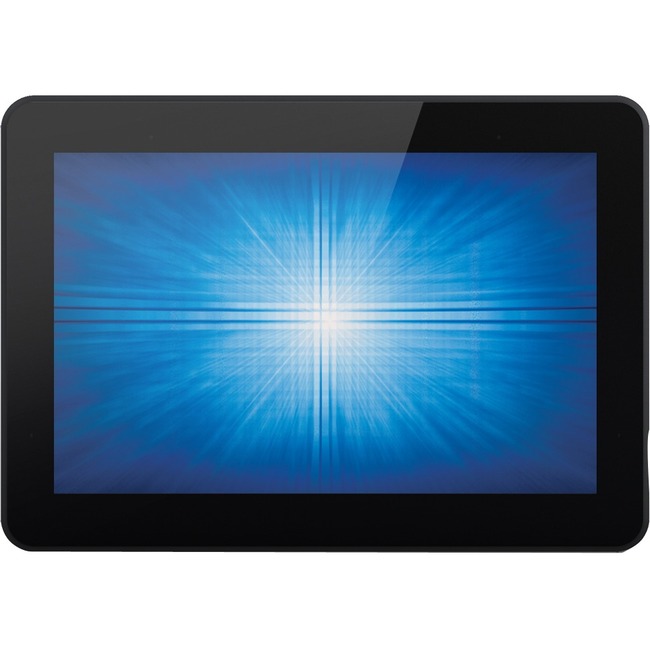

Elo 1093L 10.1" Open-frame LCD Touchscreen Monitor - 16:10 - 25 ms
Elo 1093L 10.1" Open-frame LCD Touchscreen Monitor - 16:10 - 25 ms - 10" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 262,000 Colors - 800:1 - 350 Nit, 315 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - T�V, RoHS, China RoHS, WEEE - 3 Year
| $454.49 | Retail $463.00 |
- Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
- The WXGA touchscreen highlights WXGA display with the resolution of up to 1280 x 800 pixels
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- The 350 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
By:
Elo
Manufacturer:
Elo Touch Solutions, Inc
Product ID:
173831
Item:
E321195
UPC Code:
129930809184
Our Part #
3GU978
Condition
New
$454.49EA
$463.00
$463.00
Availability
Only 2 Left In Stock
Product description
Elo 1093L 10.1" Open-frame LCD Touchscreen Monitor - 16:10 - 25 ms - 10" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 262,000 Colors - 800:1 - 350 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS, WEEE - 3 Year
10" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 262,000 Colors - 800:1 - 350 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS, WEEE - 3 Year
Specifications
Curved Screen
No
DisplayPort Version
1.1a
HDMI Version
1.3
Number of Simultaneous Touchpoints
10
Panel Technology
Thin Film Transistor (TFT)
Touchscreen Type
TouchPro Projected Capacitive
UPC Alternates
695975102219 815335025778 818213927782 818214082978
UPC Alternates
129930809184 695975102219 815335025778 818213927782 818214082978
Vertical Frequency
50 Hz to 75 Hz
VESA Mount Standard
75 x 75
Aspect ratio
16:10
Backlight Technology
LED
Brand Name
Elo
Brightness
350 Nit
Brightness
315 Nit
Certifications & Standards
Color Supported
262000 Colors
Contrast Ratio
800:1
Depth
1.5"
Energy Consumption per Year
10 kWh
Environmental Certification
WEEE
Environmental Certification
T�V
Environmental Certification
RoHS
Environmental Certification
China RoHS
Environmentally Friendly
Yes
Features
On-screen Display (OSD)
Height
7"
Horizontal Frequency
30 kHz to 60 kHz
Horizontal Viewing Angle
170°
Limited Warranty
3 Year
Manufacturer
Elo Touch Solutions Inc
Manufacturer Part Number
E321195
Manufacturer Website Address
http://www.elotouch.com
Marketing Information
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1093L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the open-frame touchscreen is perfect for kiosks casino and amusement retail self-service and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.
Touch ready.
This seamless zero-bezel 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.
Other features.
Easily integrated.
The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.
Touch ready.
This seamless zero-bezel 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
Maximum resolution
1280 x 800
Mean time between failures (MTBF)
5.7 Year
Mount Type
Flush Mount
Off-Mode Power Consumption
500 mW
Operating Power Consumption
25 W
Package Contents
- 1093L 10.1" Open Frame Touchscreen (RevB)
- HDMI Cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- EEI Label
- Japan Class-B TM info sheet
Packaged Quantity
1
Product color
Black
Product Model
1093L
Product Name
1093L 10.1" Open Frame Touchscreen (RevB)
Product Type
Open-frame LCD Touchscreen Monitor
Response time
25 ms
Screen Mode
WXGA
Screen Size Class
10"
Standby Power Consumption
700 mW
USB Standard
USB 2.0
Viewable Screen Size
10.1"
Weight (Approximate)
2.65 lb
