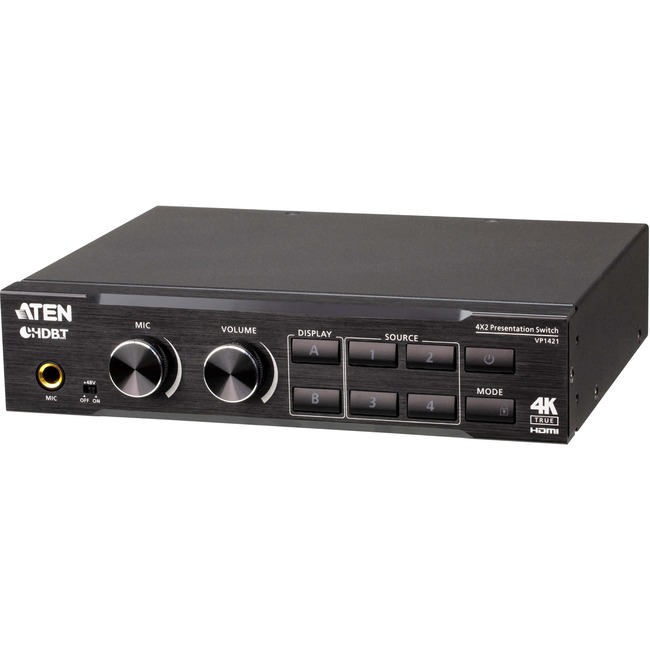

ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite - 4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Notebook, Media Player - 1 x HDMI Out
| $813.05 | Retail $1,272.00 |
- Multi-format AV Switching - switch among 1 HDBaseT, 2 HDMI and 1 VGA inputs to 1 HDBaseT and 1 HDMI outputs and support of audio DSP
- HDBaseT-Lite technology - extends uncompressed AV, IR, RS-232, and power over one Cat 6/6a cable up to 70m
- Superior video quality - True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT); HDR support
- Scaler - supports video upscaling to 4K for display A and downscaling to 1080p for display B
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
174704
Item:
VP1421
UPC Code:
672792010880
Our Part #
6KL785
Condition
New
$813.05EA
$1,272.00
$1,272.00
Availability
Only 2 Left In Stock
You may be also interested
Product description
ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite - 4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Notebook, Media Player - 1 x HDMI Out
4096 x 2160 - 4K - Twisted Pair - 4 x 2 - Notebook, Media Player - 1 x HDMI Out
Specifications
Number of Input Devices Supported
4
UPC Alternates
672792010880
Brand Name
ATEN
Connectivity technology
Cable
Depth
7.9"
Device Supported
Notebook
Device Supported
Media Player
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack-mountable
Form factor
Under Table
Graphics Modes
4K
Height
1.7"
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VP1421
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VP1421 is a multi-in-one presentation switch that integrates a video matrix True 4K scaler HDBaseT extender audio DSP and analog-to-digital converter functions into a single compact enclosure ideal for meeting rooms and educational spaces.
True 4K HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection
Connect up to 4 sources (1 HDBaseT 2 HDMI 1 VGA) smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
HDBaseT Extended Transmission over One Cable
Simplifies cabling and transmits AV power and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports).
Built-in Advanced Audio DSP
Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.
Flexible Audio Embedding/De-Embedding
Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.
Versatile Control Streamlined Operations
Control via front-panel pushbuttons IR remote web-based GUI and any control interface via RS-232 Ethernet and Contact Closure to streamline your operations.
Maximum Operating Distance
459.32 ft
Maximum Video Resolution
4096 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
2
Package Contents
- 4 x 2 True 4K Presentation Matrix Switch with Scaling DSP and HDBaseT-Lite
- 1x IR Receiver
- 1x IR Remote Control
- 4x 3-pole Terminal Blocks
- 2x 5-pole Terminal Blocks
- 1x Power Adapter
- 1x User Instructions
Packaged Quantity
1
Product Name
4 x 2 True 4K Presentation Matrix Switch with Scaling DSP and HDBaseT-Lite
Product Type
Audio/Video Switchbox
Weight (Approximate)
2.56 lb
Width
6.7"
