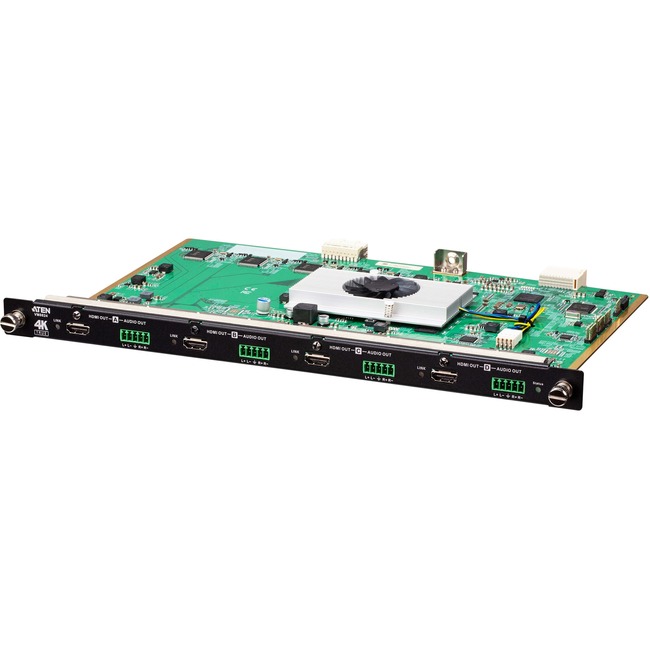

VanCryst VM8824 4-Port True 4K HDMI Output Board with Scaler
VanCryst VM8824 4-Port True 4K HDMI Output Board with Scaler - 9.4" Width x 0.9" Height x 13.9" Length - Metal
| $2,759.39 |
- Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
- True 4K Resolutions - handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)
- 4K Scaler - features a video scaling function to integrate a video wall seamlessly with various output video resolutions
- Seamless Switch™ - features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
- Video Wall - allows you to create custom video wall layouts via intuitive web GUI
- True 4K EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedd
By:
VanCryst
Manufacturer:
ATEN Technology, Inc
Product ID:
174903
Item:
VM8824
UPC Code:
672792011375
Our Part #
7VZ004
Condition
New
$2,759.39EA
Availability
Only 1 Left In Stock
Product description
VanCryst VM8824 4-Port True 4K HDMI Output Board with Scaler - 9.4" Width x 0.9" Height x 13.9" Length - Metal
9.4" Width x 0.9" Height x 13.9" Length - Metal
Specifications
Product Material
Metal
UPC Alternates
672792011375
Application/Usage
Matrix Switcher
Brand Name
VanCryst
Form factor
Wall Mountable
Height
0.9"
Length
13.9"
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VM8824
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VM8824 is a True 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources to 4 HDMI displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal the VM8824 also provides 4 stereo audio output ports that enable HDMI audio extraction.
Considering video wall applications always require fast video switching and resolution adaptation the VM8824 supports Seamless Switch™ technology that provides real-time video switching a built in 4K scaler that handles different video resolutions and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
Product Line
Professional
Product Name
VM8824 4-Port True 4K HDMI Output Board with Scaler
Product Type
HDMI Output Board
Weight (Approximate)
1.43 lb
Width
9.4"
