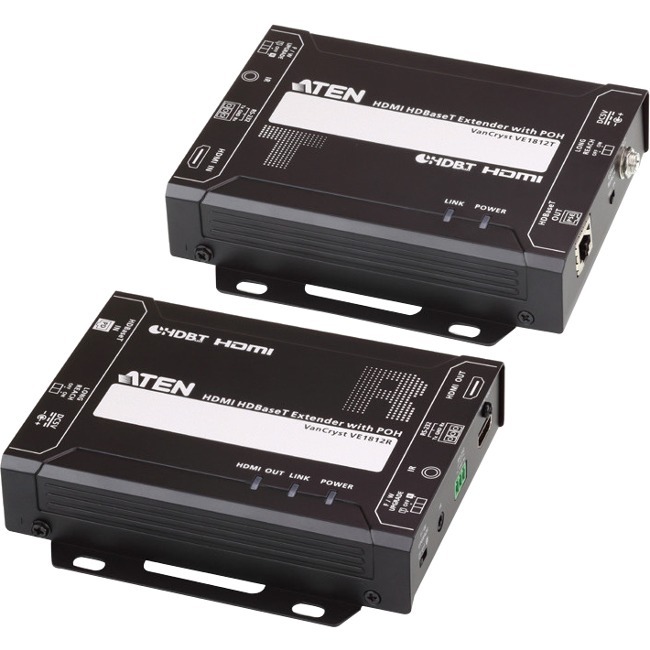

ATEN HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A)-TAA Compliant
ATEN HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A)-TAA Compliant - 1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Rack-mountable
| $481.09 | Retail $654.00 |
- HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
- Supports HDBaseT Long Reach Mode - Up to a maximum range of 150 meters @ 1080p
- 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
- HDBaseT Anti-jamming - resists signal interference during high - quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel - Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
- Rack- Mountable
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
175061
Item:
VE1812
UPC Code:
672792007705
Our Part #
2GF566
Condition
New
$481.09EA
$654.00
$654.00
Availability
Only 22 Left In Stock
Product description
ATEN HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A)-TAA Compliant - 1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Rack-mountable
1 Input Device - 1 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Rack-mountable
Specifications
Transmitter Depth
5.53"
Transmitter Height
1.18"
Transmitter Weight (Approximate)
2.03 lb
Transmitter Width
4.84"
UPC Alternates
672792007705
Brand Name
ATEN
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphics Modes
4K
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VE1812
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled the VE1812 can extend HDMI signal up to 150m @1080p.
The VE1812 supports RS-232 and IR signaling pass-through allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D Deep Color 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms video conference rooms gaming or any installation that requires superior video quality.
Marketing Information
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled the VE1812 can extend HDMI signal up to 150m @1080p.
The VE1812 supports RS-232 and IR signaling pass-through allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D Deep Color 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms video conference rooms gaming or any installation that requires superior video quality.
Maximum Operating Distance
492.13 ft
Maximum Video Resolution
3840 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- 1 x VE1812 HDMI HDBaseT Transmitter with POH
- 1 x VE1812 HDMI HDBaseT Receiver with POH
- 1 x Power Adapter
- 1 x IR Transmitter
- 1 x IR Receiver
- 2 x RS-232 Terminal Blocks
- 1 x User Instructions
Product Line
VanCryst
Product Name
HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A)
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
