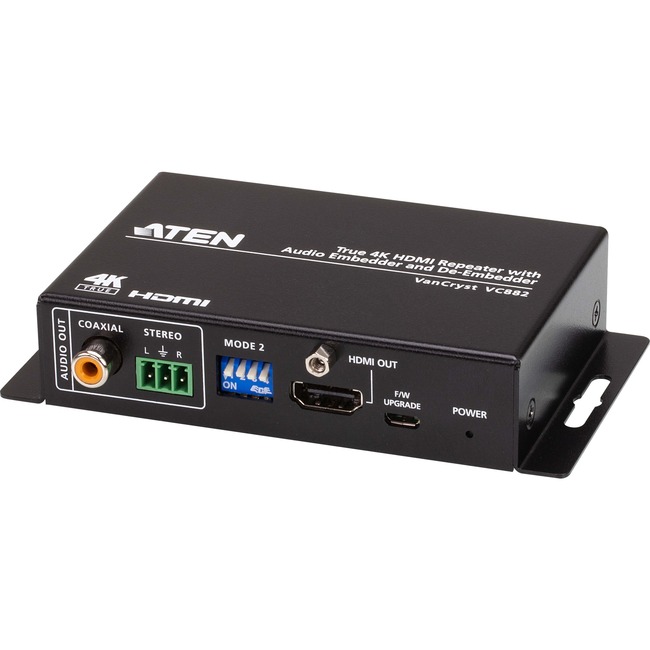

ATEN True 4K HDMI Repeater with Audio Embedder and De-Embedder
ATEN True 4K HDMI Repeater with Audio Embedder and De-Embedder - 4096 x 2160 - 16.40 ft Maximum Operating Distance - 1 x HDMI In - 1 x HDMI Out - USB
| $144.82 | Retail $176.00 |
- Embeds audio to the HDMI output or de?embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
- Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- True 4K video quality - supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports True 4K / HDR formats - HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG)
- Supports HDMI audio formats - LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1
- Compact, portable metal enclosure designed for HDMI Lock-pro
- Firmware upgradable
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
175220
Item:
VC882
UPC Code:
672792012884
Our Part #
02QA79
Condition
New
$144.82EA
$176.00
$176.00
Availability
Only 9 Left In Stock
Product description
ATEN True 4K HDMI Repeater with Audio Embedder and De-Embedder - 4096 x 2160 - 16.40 ft Maximum Operating Distance - 1 x HDMI In - 1 x HDMI Out - USB
4096 x 2160 - 16.40 ft Maximum Operating Distance - 1 x HDMI In - 1 x HDMI Out - USB
Specifications
UPC Alternates
672792012884
Brand Name
ATEN
Height
1"
Input voltage
5 V DC
Length
4.8"
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VC882
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VC882 is a True 4K HDMI Repeater with Audio Embedder and De-Embedder capable of embedding or de-embedding the HDMI audio signal while supporting the HDMI signal transmission distance up to 5 meters with True 4K resolution. Apart from embedding a separate audio to an outgoing HDMI signal the VC882 also allows audio extraction from the HDMI signal and outputs the extracted signal through an alternative audio system.
In terms of the audio aspect the VC882 works with versatile pass-through of HDMI audio formats - LPCM2.0 Dolby Digital 2.0 Dolby Digital 5.1 and DTS Digital 5.1. The VC882 also supports ARC function which eliminates the need of bulky cable setups when connecting an AV receiver or a home theater system to a TV. When it comes to the video aspect the VC882 supports True 4K (4096 x 2160 @ 60Hz 4:4:4) in HDR10 HDR10+ Dolby Vision and Hybrid Log-Gamma (HLG) formats to provide staggeringly crisp images. It is HDCP 2.2-compliant for content protection. The compact enclosure design True 4K signal transmission and embedding / de-embedding capability have made the VC882 ideal for training and conference rooms video production and home theater installations.
Maximum Operating Distance
16.40 ft
Maximum Video Resolution
4096 x 2160
Package Contents
- True 4K HDMI Repeater with Audio Embedder and De-Embedder
- 1 x Power Adapter
- 1 x User Instructions
Packaged Quantity
1
Product Name
True 4K HDMI Repeater with Audio Embedder and De-Embedder
Product Type
Signal Repeater
USB
Yes
Weight (Approximate)
8.47 oz
Width
3.2"
