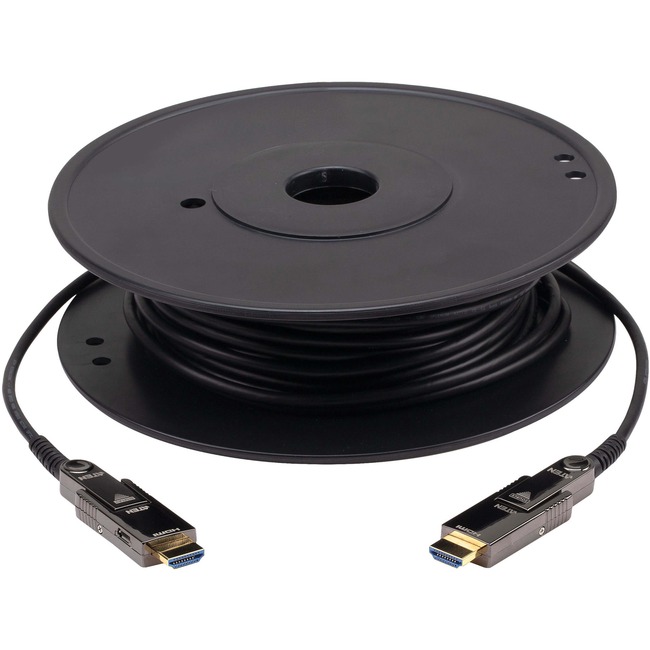

ATEN 10M True 4K HDMI Active Optical Cable
ATEN 10M True 4K HDMI Active Optical Cable - 32.81 ft Fiber Optic A/V Cable for Audio/Video Device, Repeater, Video Splitter, Video Switcher, TV, Home Theater System - First End: 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male - Second End: 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male - 18 Gbit/s - Supports up to 4096 x 2160 - Gold Plated Connector - Plenum, CMP - 28 AWG - Black
| $143.58 | Retail $206.00 |
- HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2 compliant
- Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 10 m
- Supports HDR
- Supports HDMI Ethernet Channel (HEC) - combines audio, video, and data streams into a cable to simplify the set-up
- Supports Audio Return Channel (ARC) - connects TV and audio system, eliminating the need for an additional cable
- Reduced EMI and RFI for lower noise interference
- Supports multi audio channel - Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
- Additional power source is available via Micro USB cable for better compatibility
- Gold-plated connectors for reliable transmissions
- Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
- Pluggable gender for easy installation
- Plug-and-play
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
175273
Item:
VE7831A
UPC Code:
672792013522
Our Part #
26121607
Condition
New
$143.58EA
$206.00
$206.00
Availability
Only 3 Left In Stock
Product description
ATEN 10M True 4K HDMI Active Optical Cable - 32.81 ft Fiber Optic A/V Cable for Audio/Video Device, Repeater, Video Splitter, Video Switcher, TV, Home Theater System - First End: 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male - Second End: 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male - 18 Gbit/s - Supports up to 4096 x 2160 - Gold Plated Connector - Plenum, CMP - 28 AWG - Black
32.81 ft Fiber Optic A/V Cable for Audio/Video Device, Repeater, Video Splitter, Video Switcher, TV, Home Theater System - First End: 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male - Second End: 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male - 18 Gbit/s - Supports up to 4096 x 2160 - Gold Plated Connector - Plenum, CMP - 28 AWG - Black
Specifications
Connector on First End Details
1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male
Connector Type on First End
HDMI Type A Digital Audio/Video - Male
Material Details
- Conductor - Tinned Copper
- Zinc-Alloy - Connector Case
Product Material
Zinc Alloy
Product Material
Tinned Copper
Shielding Material
Aluminum Mylar
UPC Alternates
672792013522
American Wire Gauge
28 AWG
Brand Name
ATEN
Cable length
32.81 ft
Cable type
Fiber Optic
Compatibility
Presentation Switches:
- VP1421
- VP1420
- VC882
- VC486
- VM0202HB
- VM0404HB
- VM0808HB
- VS82H
- VS0110HA
- VS184B
- VS182B
- VS481C
- VS0801HB
Connector Plating
Gold
Data transfer rate
18 Gbit/s
Device Supported
Video Switcher
Device Supported
Repeater
Device Supported
Audio/Video Device
Device Supported
TV
Device Supported
Home Theater System
Device Supported
Video Splitter
Environmental Certification
RoHS 2
Environmentally Friendly
Yes
Features
Bendable
Features
Consumer Electronics Control (CEC)
Features
Audio Return Channel (ARC)
Features
Plug & Play
Features
Extended Display Identification Data (EDID)
Features
EMI/RF Protection
Features
Flame Retardant
Features
HDMI Ethernet Channel (HEC)
Features
HDCP 2.0
Features
HDR Support
Jacket Type
CMP
Jacket Type
Plenum
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VE7831A
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
ATEN VE7832 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 15 m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D deep color and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio the optical cable guarantees lossless audio signal transmissions.
Engineered to meet the latest trend of integrator-friendly design the VE7832 optical cable features pluggable gender and gold-plated connectors. Therefore the cable is an ideal solution for extending the reach of your digital signage in a wide range of settings such as traffic stations shopping centers and hospital facilities.
Package Contents
- 1 x VE7831A 10M True 4K HDMI Active Optical Cable
- 1 x Wiring Tool
- 1 x Screwdriver
- 2 x Screws
- 1 x Micro USB to USB Cable
- 1 x Installation Notice
- 1 x User Instructions
Product color
Black
Product Name
10M True 4K HDMI Active Optical Cable
Product Type
A/V Cable
Supported Resolution
4096 x 2160
Weight (Approximate)
0.66 lb
