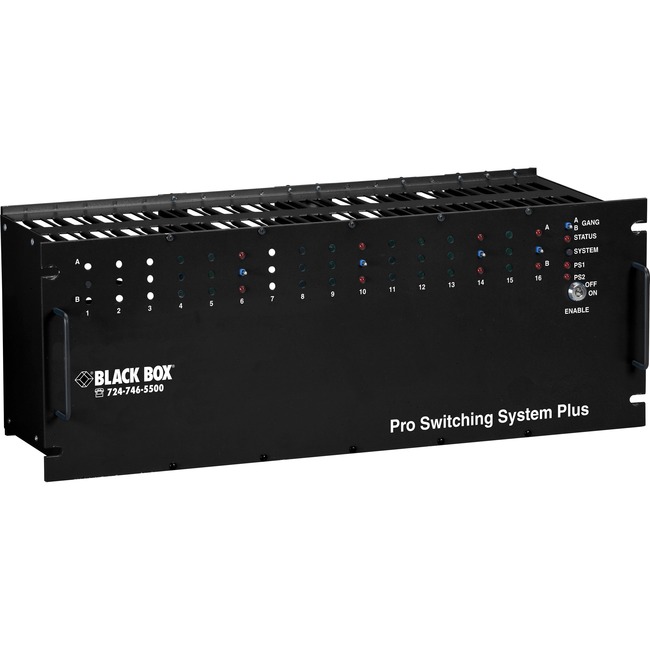

Black Box Pro Switching Gang Switch Chassis - 4U, 18-Card Slot
Black Box Pro Switching Gang Switch Chassis - 4U, 18-Card Slot - TAA Compliant - 1 Layer Supported - Modular - 4U High - Rack-mountable - 1 Year Limited Warranty
| $585.34 |
- Add reliability to critical networks and systems with a 4U Gang Switch system.
- Monitor and control access to networks remotely.
- Gang switch all ports or switch individual ports.
- Automate the backup of individual connections or entire networks based on port failure or time of day.
- daisy chain up to 255 racks.
- Holds up to 16 switch modules in a single chassis
- One daisy-chained system can support up to 4080 ports
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
175589
Item:
SM960A
UPC Code:
822088117308
Our Part #
VV5972
Condition
New
$585.34EA
Availability
Only 1 Left In Stock
Product description
Black Box Pro Switching Gang Switch Chassis - 4U, 18-Card Slot - TAA Compliant - 1 Layer Supported - Modular - 4U High - Rack-mountable - 1 Year Limited Warranty
TAA Compliant - 1 Layer Supported - Modular - 4U High - Rack-mountable - 1 Year Limited Warranty
Specifications
Compatible Rack Unit
4U
UPC Alternates
822088117308
Brand Name
Black Box
Country of origin
United States
Depth
6.5"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Height
7"
Layer Supported
1
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
SM960A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
- Supports CAT6 10-GbE as well as legacy RS-232 connections via optional modules.
- Switch operates at Layer 1 and is transparent to data formats and protocols.
- Choose a separately available Controller Card to control switching locally or remotely.
The Pro Switching System Plus is an intelligent ganged switching system consisting of a chassis and individual interface cards (order separately). The advanced design of this system gives you incredible operational flexibility and performance.
You can switch one card individually or switch the entire rack through a Controller Card. You can even daisychain multiple chassis to control up to 4080 individual ports.
The chassis includes a backplane for plugging in the cards. Just order the cards you need as well as a Power Supply Module (or for redundancy order two Power Supply Modules).
Switch securely.
For fail-safe operation the system uses proprietary micro-mirror or latching relay switching technology. That means data can continue to pass through even if the power has been cut off.
The cards perform Layer 1 switching so the system operates independently of data rates protocols formats or signal levels.
The Controller Card.
The key to the system is the Controller Card. One is required for each 18-slot chassis and it takes up two card slots. The Controller Card enables you to individually switch any port from the front panel or gang switch the entire system.
For more capabilities choose models with an RS-232 serial controller or an SNMP-based Ethernet controller which also includes GUI Switchcenter software. These intelligent cards enable you to switch from anywhere in the world via an RS-232 or IP connection.
Each chassis also has a keyed switch so you can enable/disable manual switching from the front-panel toggle switches.
Pick a card any card.
Switching cards are available for RS-232 video fiber and CAT5 and CAT6 connections.
Mix it up.
Use the system to support both new and legacy technologies. Add cards for fast CAT6 10-GbE networking while keeping connections for older RS-232 and 75-ohm video connections.
Control power.
To power a backup network choose the 1-In/2-Out Power Switch Modules. Or to set up a redundant backup power supply choose the 2-In/1-Out models. Both are available with advanced network reporting functions.
Product color
Black
Product Line
Pro Switching
Product Name
Pro Switching Gang Switch Chassis - 4U 18-Card Slot
Product Type
Switch Chassis
Width
19"
