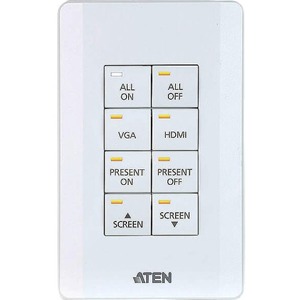

ATEN Control System - 8-button Keypad (US, 1 Gang)-TAA Compliant
ATEN Control System - 8-button Keypad (US, 1 Gang)-TAA Compliant
| $259.30 | Retail $270.00 |
- Key pad - provides physical connection to the ATEN Control System
- Fully customizable with 14 layout combinations of 4 to 8 buttons
- System LED indicators for quick connection status check
- Dual-color button LEDs for clear indication and visibility in dark environments
- Easy ID paring with Control Box for Ethernet communication
- Up to 8 keypads connect to a single Control Box for future scalability
- Unrestricted modes support flexible behavior settings for each button
- Intuitive web GUI for easy keypad configuration
- Dual power supply - DC 5V or Power over Ethernet
- Customized button engraving service
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
175827
Item:
VK108US
UPC Code:
672792007798
Our Part #
2PB564
Condition
New
$259.30EA
$270.00
$270.00
Availability
Only 1 Left In Stock
You may be also interested
Product description
ATEN Control System - 8-button Keypad (US, 1 Gang)-TAA Compliant
Specifications
Product Material
Plastic
UPC Alternates
672792007798 817218520936
Additional Information
Ethernet:
- 1 x RJ-45 Female 10/100Base-T
- Supported Protocol: ICMP TCP/IP DHCP HTTPS
- DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
- IP: 192.168.0.60
- Subnet Mask: 255.255.255.0
Switches
- Controller ID 1 x 16-segment Switch
- Keypad ID 1 x 8-segment Switch
Reset Button: 1 x Semi-recessed Pushbutton
Power Consumption:
- DC5V:1.25W:6BTU
- DC48V:1.58W:7BTU
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH Non-Condensing
Housing: Plastic
Weight: 0.13 kg ( 0.29 lb )
Dimensions:
(L x W x H) 11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.)
Faceplate Dimension:
(L x W x H) 11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
Application/Usage
Meeting Room
Application/Usage
Conference Room
Application/Usage
Classroom
Brand Name
ATEN
Compatibility
- Aten VK2100 Control System
- Aten VK1100 Control System
Country of origin
Taiwan
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Height
1.5"
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VK108US
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the VK2100/VK1100 Control Box over a LAN users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button's ready to go you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution perfect to serve as the primary interface in small meeting rooms or as secondary device control in classrooms and conference centers.
Package Contents
- Control System - 8-button Keypad (US 1 Gang)
- 1 x Button Pack
- 1 x Terminal Block
- 1 x Faceplate
- 1 x User Instructions
Packaged Quantity
1
Product Name
Control System - 8-button Keypad (US 1 Gang)
Product Type
A/V Control Panel
Weight (Approximate)
4.59 oz
Width
2.8"
