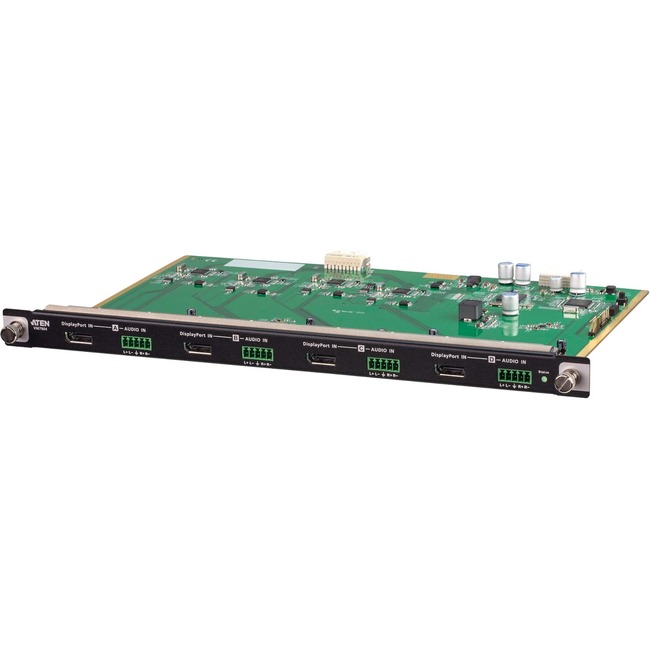

Aten 4-Port 4K Display Port Input Board-TAA Compliant
Aten 4-Port 4K Display Port Input Board-TAA Compliant - 1 - Metal
| $1,490.14 | Retail $1,750.00 |
- Compatible with the VM1600A / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
- Connects up to 4 DisplayPort inputs to up to 16 (VM1600A) or 32 (VM3200) displays
- Superior video quality - up to 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
- Audio-enabled - DisplayPort audio can be exracted and stereo audio can be embedded
- EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Support DP1.1 with data rate up to 10.8 Gbps (2.7 Gbps per lane)
- HDCP 2.2 Compliant
- Hot-swappable design for easy integration and maintenance
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
175834
Item:
VM7904
UPC Code:
672792009570
Our Part #
6DC422
Condition
New
$1,490.14EA
$1,750.00
$1,750.00
Availability
Only 1 Left In Stock
You may be also interested
Product description
Aten 4-Port 4K Display Port Input Board-TAA Compliant - 1 - Metal
1 - Metal
Specifications
Material Details
- Metal - Housing
Product Material
Metal
UPC Alternates
672792009570 818252075628
Application/Usage
Matrix Switcher
Brand Name
ATEN
Compatibility
Aten Devices
- VM8814
- VM1600A
- VM3200
- VM8514
- VM8804
- VM8604
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
0.9"
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VM7904
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VM7904 is a 4K DisplayPort Input Board that works with an ATEN Modular Matrix Switch to offer an easy way that routes 4 DisplayPort video and audio sources to up to 16 or 32 displays. In addition to the DisplayPort interface that carries digital A/V signal the VM7904 also provides 4 stereo audio input ports that allow stereo audio to be routed independently or embedded for digital output.
Ideal for high-resolution video wall applications the VM7904 effectively routes DisplayPort sources with 4K resolution up to 4096x2160@30Hz (4:4:4) and EDID Expert technology for the optimum resolutions across different displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switch offer flexible solutions that perfectly meet your demands for video-critical applications.
Package Contents
- 4-Port 4K Display Port Input Board
- 4 x Terminal Blocks
- 1 x User Instructions
Packaged Quantity
1
Product Name
4-Port 4K Display Port Input Board
Product Series
VM
Product Type
Matrix Switcher Input Card
Weight (Approximate)
1.21 lb
Width
9.4"
