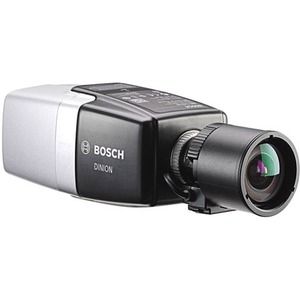

Bosch DINION IP 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - Box
Bosch DINION IP 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - Box - H.264, MJPEG, H.264 (MP) - 1920 x 1080 - CMOS - Tripod Mount, Wall Mount, Ceiling Mount, Pole Mount, Column Mount, Junction Box Mount, Bracket Mount
| $1,005.01 |
- Built-in Essential Video Analytics to trigger relevant
- alerts and quickly retrieve data
- Intelligent Dynamic Noise Reduction reduces
- bandwidth and storage requirements by up to 50%
- Extended Dynamic Range mode to see details in
- bright and dark areas simultaneously
- Excellent low-light performance
- Auto back focus for fast installation
By:
Bosch
Manufacturer:
The Bosch Group
Product ID:
175953
Item:
NBN-63023-B
UPC Code:
800549805698
Our Part #
6F6693
Condition
New
$1,005.01EA
Availability
Only 22 Left In Stock
Product description
Bosch DINION IP 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - Box - H.264, MJPEG, H.264 (MP) - 1920 x 1080 - CMOS - Tripod Mount, Wall Mount, Ceiling Mount, Pole Mount, Column Mount, Junction Box Mount, Bracket Mount
H.264, MJPEG, H.264 (MP) - 1920 x 1080 - CMOS - Tripod Mount, Wall Mount, Ceiling Mount, Pole Mount, Column Mount, Junction Box Mount, Bracket Mount
Specifications
Analog Video Signal Format
CVBS
Indoor/Outdoor
Indoor
Lens Included
No
Lens Mount Type
CS-Mount
Minimum Operating Temperature
-4°F (-20°C)
Operating Humidity
100%
UPC Alternates
800549805698
Brand Name
Bosch
Color Supported
Monochrome
Color Supported
Color
Connectivity technology
Wired
Effective Camera Resolution
2 Megapixel
Environmental Certification
WEEE
Environmental Certification
China RoHS
Environmentally Friendly
Yes
Features
Enter/Exit Detector
Features
Dynamic Noise Reduction
Features
Privacy Masking
Features
Cross Line Detection
Features
Wide Dynamic Range
Features
Back Light Compensation (BLC)
Features
SD Card Local Storage
Features
ePTZ
Features
Auto Gain Control
Features
Automatic White Balance
Features
Region of Interest
Features
Audio Detection
Features
Tamper Detection
Features
Automatic Defog
Features
Day/Night
Form factor
Box
Height
2.6"
Image Sensor Type
CMOS
Input voltage
24 V AC
Input voltage
12 V DC
Length
5.5"
Longest Shutter Speed
1/30 Second
Manufacturer
The Bosch Group
Manufacturer Part Number
NBN-63023-B
Manufacturer Website Address
http://www.bosch.com
Marketing Information
This camera provides clear images 24/7 - even at night or under low-light conditions.
The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting.
The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. There is a selection of high quality lenses separately available.
Functions
Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that ensures no critical data is lost.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
Essential Video Analytics
The built-in video analysis reinforces the Intelligenceat-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges.
The system reliably detects tracks and analyzes objects and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.
Calibration is quick and easy - just enter the height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Intelligent Auto Exposure
Fluctuations in backlight and front light can ruin your images. To achieve the perfect picture in every situation Intelligent Auto Exposure automatically adjusts the exposure of the camera. It offers superb front light compensation and incredible backlight compensation by automatically adapting to changing light conditions.
The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting.
The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. There is a selection of high quality lenses separately available.
Functions
Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that ensures no critical data is lost.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
Essential Video Analytics
The built-in video analysis reinforces the Intelligenceat-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges.
The system reliably detects tracks and analyzes objects and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.
Calibration is quick and easy - just enter the height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Intelligent Auto Exposure
Fluctuations in backlight and front light can ruin your images. To achieve the perfect picture in every situation Intelligent Auto Exposure automatically adjusts the exposure of the camera. It offers superb front light compensation and incredible backlight compensation by automatically adapting to changing light conditions.
Maximum frame rate
60 fps
Maximum Operating Temperature
131°F (55°C)
Maximum Video Resolution
1920 x 1080
Mount Type
Pole Mount
Mount Type
Tripod Mount
Mount Type
Wall Mount
Mount Type
Column Mount
Mount Type
Ceiling Mount
Mount Type
Bracket Mount
Mount Type
Junction Box Mount
Package Contents
- 1 x Fixed Camera 1MP HDR
- 1 x Sensor Protection Cap (Mounted on Camera)
- 1 x Power Connector (2 Pins)
- 1 x Data/Alarm Connector (12 Pins)
- 1 x Installation Guide
- 1 x Identification Label Sheet
- 1 x C/CS Mount Adapter Ring for Mounting a Lens with a C-Mount
Product color
Gray
Product Family
DINION IP 6000
Product Line
DINION IP
Product Name
Fixed Camera 2MP HDR
Product Series
6000
Product Type
Network Camera
Recording Formats
Full HD
Shortest Shutter Speed
1/15000 Second
Storage Type
Memory Card
Video Formats
MJPEG
Video Formats
H.264 (MP)
Video Formats
H.264
Video Signal Format
NTSC
Video Signal Format
PAL
Weight (Approximate)
1.52 lb
Width
3.1"
