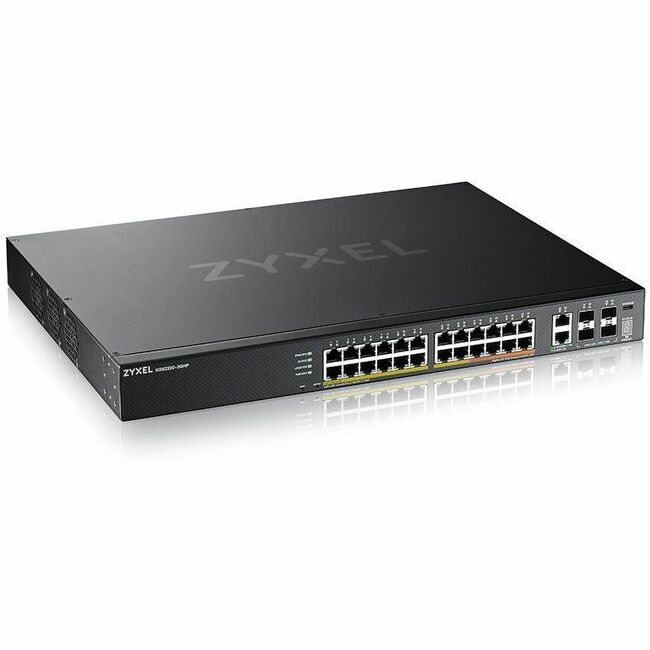

ZYXEL 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W)
ZYXEL 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W) - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 477 W Power Consumption - 400 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable - Lifetime Limited Warranty
| $968.35 | Retail $1,749.99 |
- Handles the latest high-bandwidth applications easily with up to six 10G connectivity
- NebulaFlex Pro allows users to switch between standalone management and intuitive Nebula cloud managed mode with 1-YEAR Pro Pack bundled
- Tailor-made Networked AV mode brings efficiency to professional AVoIP networking setups and monitoring services
- Support both PoE++ and PoE+ providing 60 W and 30 W for each port respectively with high power budget of up to 960 W
- Support Multi-Gigabit: 100M/1G/2.5G/5G/10G connections
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
By:
ZYXEL
Manufacturer:
ZYXEL Communications Corp.
Product ID:
176002
Item:
XGS2220-30HP
UPC Code:
760559129583
Our Part #
12PT18
Condition
New
$968.35EA
$1,749.99
$1,749.99
Availability
Only 3 Left In Stock
You may be also interested
Product description
ZYXEL 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W) - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 477 W Power Consumption - 400 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable - Lifetime Limited Warranty
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 477 W Power Consumption - 400 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable - Lifetime Limited Warranty
Specifications
Number of Total Expansion Slots
4
PoE Budget
400 W
Total Number of Network Ports
24
UPC Alternates
760559129583
Brand Name
ZYXEL
Depth
13"
Environmental Certification
RoHS
Ethernet Technology
10 Gigabit Ethernet
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Rack-mountable
Frequency
60 Hz
Frequency
50 Hz
Height
1.7"
Input voltage
120 V AC
Input voltage
230 V AC
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
ZYXEL Communications Corp.
Manufacturer Website Address
http://www.us.zyxel.com
Marketing Information
The XGS2220 Series is a family of Layer 3 access Switch that consists of six models including PoE Non-PoE and fiber options. In addition to four 10G SFP+ uplink all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port all serving the purpose to achieve business connectivity based on the flexibility of variety option of media interfaces and make itself an ideal choice for increasing business productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature offering near silence while the Switch is in operation.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers network storages or other high-speed network devices with either 10G copper or fiber connection. In addition the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP video conference IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast IGMP snooping Multicast VLAN Registration (MVR) provide hotels businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information accompanied with condensed function menu helps you manage and monitor the system with ease.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers network storages or other high-speed network devices with either 10G copper or fiber connection. In addition the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP video conference IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast IGMP snooping Multicast VLAN Registration (MVR) provide hotels businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information accompanied with condensed function menu helps you manage and monitor the system with ease.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10GBase-X
Network Technology
10GBase-T
Network Technology
100/1000Base-T
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.11ax
Networking standards
IEEE 802.3z
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.1Q
Networking standards
IEEE 802.3az
Networking standards
IEEE 802.11ac
Networking standards
IEEE 802.1s
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.1D
Networking standards
IEEE 802.3ae
Networking standards
IEEE 802.1x
Networking standards
IEEE 802.1ad
Networking standards
IEEE 802.1w
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.1ab
Networking standards
IEEE 802.3an
Package Contents
- 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W)
- Power Cord
- Rack Mounting Kit
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
16 x Gigabit Ethernet PoE+
Power consumption
477 W
Power source
Power Supply
Product Name
24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W)
Product Series
XGS2220
Product Type
Layer 3 Switch
Weight (Approximate)
9.59 lb
Width
17.4"
