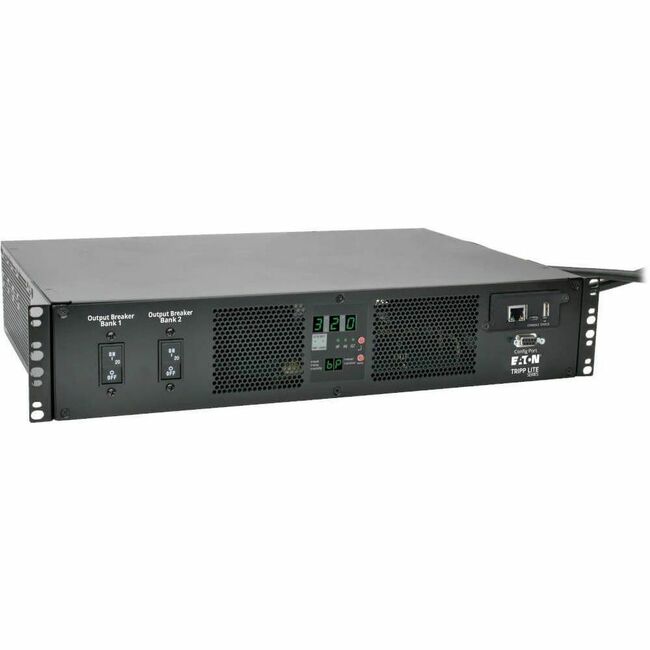

Tripp Lite PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U
Tripp Lite PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - IEC 60309 32A BLUE (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kVA - 1U/2U - Horizontal Rackmount
| $1,314.25 | Retail $1,819.58 |
- Single-phase IEC309 32A Blue (2P+E) input and 230V output
- 16 C13 and 2 C19 switched outlets in 2 load banks
- Automatic transfer switching within 1-5 ms
- Ethernet network interface for remote access
- Digital LED display for real-time status monitoring
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
176300
Item:
PDUMH32HVATNET
UPC Code:
037332186874
Our Part #
3Q5912
Condition
New
$1,314.25EA
$1,819.58
$1,819.58
Availability
Only 71 Left In Stock
Product description
Tripp Lite PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - IEC 60309 32A BLUE (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kVA - 1U/2U - Horizontal Rackmount
IEC 60309 32A BLUE (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kVA - 1U/2U - Horizontal Rackmount
Specifications
Mounting Orientation
Horizontal
Plug/Connector Detail
2 x IEC 60309 32A BLUE (2P+E)
Power Rating (Watt)
7400 W
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
16 x IEC 60320 C13
UPC Alternates
037332186874
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
12.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
3.5"
Input current
32 A
Input voltage
230 V AC
Limited Warranty
2 Year
Management
- HTTP
- HTTPS
- PowerAlert
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- Telnet
- SSH
- FTP
- DHCP
- BOOTP and NTP
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH32HVATNET
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 2U of space in EIA-standard racks and features 18 switched outlets(16 C13 and two C19) in two load banks each bank protected by a 20A circuit breaker.
Dual 3-meter input cords with IEC309 32A Blue(2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring configuration control and notifications via web browser SSH telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Supports user-programmable startup of outlets in any order or interval to ensure network items are turned on in the proper sequence and reliably discovered. Digital LED display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity with the optional ENVIROSENSE module(sold separately).
Dual 3-meter input cords with IEC309 32A Blue(2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring configuration control and notifications via web browser SSH telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Supports user-programmable startup of outlets in any order or interval to ensure network items are turned on in the proper sequence and reliably discovered. Digital LED display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity with the optional ENVIROSENSE module(sold separately).
Mount Type
Rack-mountable
Package Contents
- PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU
- Rack-mounting brackets
- Cord retention brackets
- Cable ties
- Owner's manual
Plug/Connector Type
IEC 60309 32A Blue (2P+E)
Product Name
PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU
Product Series
Switched
Product Type
PDU
Protection Type
Overload Protection
Rack Height
1U/2U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
13.70 lb
Width
17.5"
