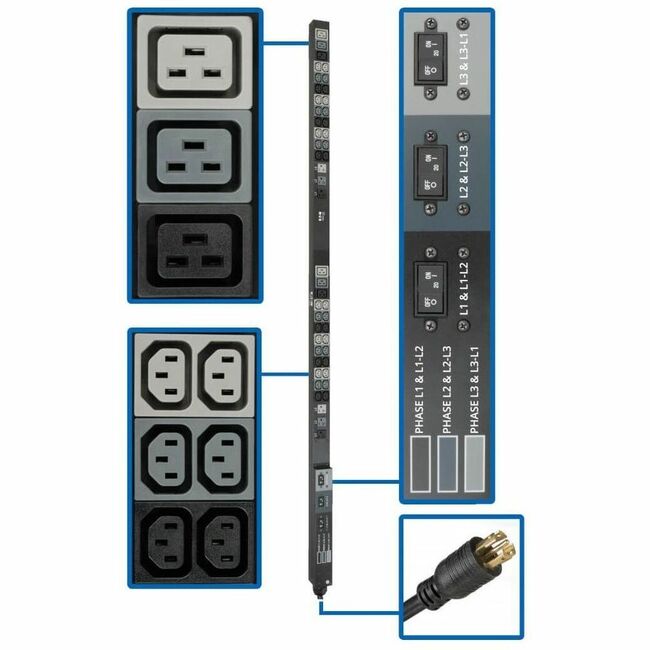

Tripp Lite PDU 3-Phase Basic 208/120V 8.6kW 36 C13 6 C19 6 5-15/20R 70in 0U
Tripp Lite PDU 3-Phase Basic 208/120V 8.6kW 36 C13 6 C19 6 5-15/20R 70in 0U - Basic - NEMA L21-30P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R - 230 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant
| $837.65 | Retail $1,126.94 |
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 36 C13, 6 C19 and 6 5-15/20R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 6 ft. power cord with NEMA L21-30P input connects to compatible AC source
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
176304
Item:
PDU3V6L2130
UPC Code:
037332255686
Our Part #
8JU666
Condition
New
$837.65EA
$1,126.94
$1,126.94
Availability
Only 63 Left In Stock
Product description
Tripp Lite PDU 3-Phase Basic 208/120V 8.6kW 36 C13 6 C19 6 5-15/20R 70in 0U - Basic - NEMA L21-30P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R - 230 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant
Basic - NEMA L21-30P - 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R - 230 V AC - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant
Specifications
Locking Receptacles
Cord Retention Bracket
Mounting Orientation
Vertical/Toolless
PDU Type
Basic
Phase
Three Phase
Power Rating (Watt)
8600 W
Receptacle Detail
6 x NEMA 5-15/20R
Receptacle Detail
36 x IEC 60320 C13
Receptacle Detail
6 x IEC 60320 C19
UPC Alternates
037332255686
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
1.7"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input current
24 A
Input voltage
230 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU3V6L2130
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Three-Phase 208/120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers computer rooms and network closets the PDU3V6L2130 features 36 C13 (208V) six C19 (208V) and six NEMA 5-15/20R (120V) outlets in three breakered load banks for connecting equipment. A six-foot cord with L21-30P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. Three 20A circuit breakers one per output phase protect connected components from dangerous overloads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2130 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Mount Type
Rack-mountable
Output voltage
120 V AC
Output voltage
208 V AC
Package Contents
- PDU3V6L2130 48-Outlets PDU
- Plug Retention Brackets With Installation Hardware
- Rack-mounting Hardware
- Owner's Manual
Plug/Connector Type
NEMA L21-30P
Product Name
PDU3V6L2130 48-Outlets PDU
Product Type
PDU
Protection Type
Accidental Power Shutdown
Protection Type
Circuit Protection
Protection Type
Overload Protection
Rack Height
0U
Receptacle Type
IEC 60320 C13
Receptacle Type
NEMA 5-15/20R
Receptacle Type
IEC 60320 C19
Weight (Approximate)
13.90 lb
Width
2.2"
