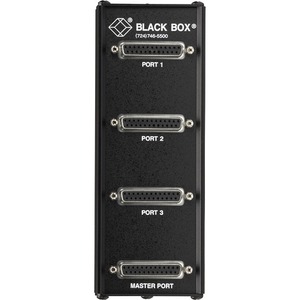

Black Box RS232 Passive Splitter - DB25, 3-Port
Black Box RS232 Passive Splitter - DB25, 3-Port - TAA Compliant
| $126.01 |
- MASTER port is configured DTE and PORTS 1-3 are configured DCE
- Signals present on the MASTER connector at pins 1, 3, 5, 6, 7, 8, 15, and 17 are sent to the corresponding pins on each of the PORT connectors.
- Signals present on the PORT connectors at pins 2, 4, and 20 are passively stored and sent to the corresponding pins on the MASTER connector.
- The total combined length of all cables connected to the unit should be less than 50 feet (15.2 m).
- Data coming into the MASTER port on pin 3 of the RS232 DB25 Passive Splitter goes to all three Slave ports since they are all tied common.
- Only one SLAVE port may transmit data to the MASTER port at any one time, Pin 2 on the three SLAVE ports are not tied in common and are isolated from each other by an OR gate.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
176577
Item:
TL073A-R4
UPC Code:
007540903952
Our Part #
UT2017
Condition
New
$126.01EA
Availability
Only 28 Left In Stock
Product description
Black Box RS232 Passive Splitter - DB25, 3-Port - TAA Compliant
TAA Compliant
Specifications
UPC Alternates
007540903952 013269121379 818283713025 822088066583
Brand Name
Black Box
Country of origin
China
Depth
1.3"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
7.5"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
TL073A-R4
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Use our Modem Splitter to connect three terminals to one modem and save money - you won't need extra modems and extra lines!
No special cables are needed. It uses ordinary straight-pinned cables for a hookup and includes a 6-ft. DB25 male/DB25 female extension cable and a serial DB9 female/DB25 male AT adapter.
The Modem Splitter is transparent to speed and protocol and works equally well in sync and async environments.
The TL073A-R4 includes (1) modem splitter (1) 6-ft. DB25 male/DB25 female extension cable and (1) serial DB9 female/DB25 male AT adapter.
A 6-Port Modem Splitter is also available. See "Similar Products."
Package Contents
- RS232 Passive Splitter - DB25 3-Port
- 1 x 6-ft. DB25 Male/DB25 female Extension Cable
- 1 x Serial DB9 Female/DB25 male AT Adapter
Packaged Quantity
1
Product Name
RS232 Passive Splitter - DB25 3-Port
Product Type
Signal Splitter
Weight (Approximate)
1.98 lb
Width
2.5"
