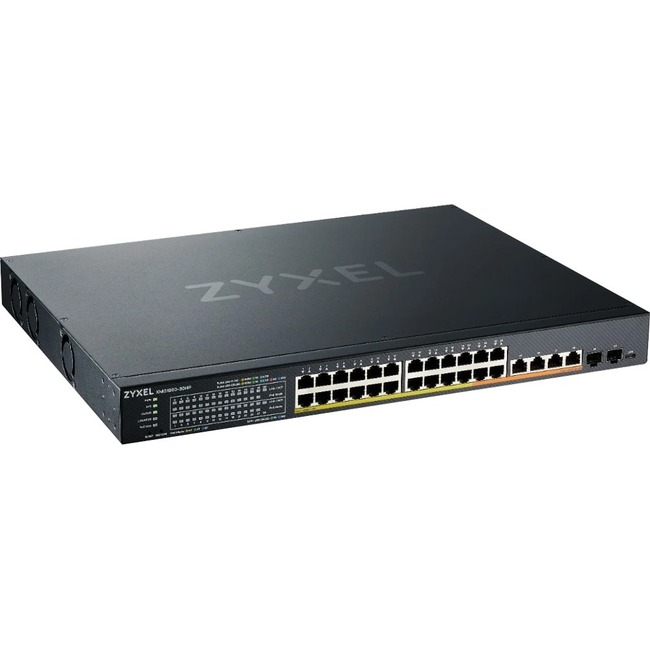

ZYXEL XMG1930-30HP Ethernet Switch
ZYXEL XMG1930-30HP Ethernet Switch - 28 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-T, 10GBase-X - 3 Layer Supported - Modular - 864.10 W Power Consumption - 700 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - Lifetime Limited Warranty
| $1,367.80 | Retail $2,099.99 |
- Multi-Gigabit supports with 2.5G and 10G combinations offering flexibility for high density Multi-Gig deployments
- Up to SIX 10G uplinks including both copper and fiber options providing extensibility and resilience for networks
- PoE model supports both 802.3bt PoE++ (60 W) and 802.3at PoE+ with a highpower budget of up to 700 W to easily connect WiFi 6/6E APs or IoT devices in your network
- Nebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
- Access and manage the full feature sets included from the first day of purchase through the local web GUI
By:
ZYXEL
Manufacturer:
ZYXEL Communications Corp.
Product ID:
176846
Item:
XMG1930-30HP
UPC Code:
760559129422
Our Part #
09QB10
Condition
New
$1,367.80EA
$2,099.99
$2,099.99
Availability
Only 1 Left In Stock
Product description
ZYXEL XMG1930-30HP Ethernet Switch - 28 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-T, 10GBase-X - 3 Layer Supported - Modular - 864.10 W Power Consumption - 700 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - Lifetime Limited Warranty
28 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-T, 10GBase-X - 3 Layer Supported - Modular - 864.10 W Power Consumption - 700 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable - Lifetime Limited Warranty
Specifications
Number of Total Expansion Slots
2
PoE Budget
700 W
Total Number of Network Ports
28
UPC Alternates
760559129422
Brand Name
ZYXEL
Depth
13"
Environmental Certification
RoHS
Ethernet Technology
2.5 Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Rack-mountable
Frequency
50 Hz
Frequency
60 Hz
Height
1.7"
Input voltage
230 V AC
Input voltage
120 V AC
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
ZYXEL Communications Corp.
Manufacturer Part Number
XMG1930-30HP
Manufacturer Website Address
http://www.us.zyxel.com
Marketing Information
The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models with and without PoE options. On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
Benefits | Upgrade network with flexible connection choices
The XMG1930 Series Switch supports IEEE 802.3bz standard and includes both 2.5G and 10G port options to provide Multi-Gigabit technology on existing wiring infrastructure designed for standard gigabit protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It's common for Multi-Gigabit switches to operate at different link speed for each individual ports so the XMG1930 Series is designed with a unique 5-color LED providing an intuitive indication of connection speed for each individual ports.
Superior PoE paves the way for high performance WiFi 6 APs
Upgrading business wireless infrastructure to WiFi 6/6E requires a reliable network Switch to provide solid backbone services. The XMG1930-30HP comes with 8 ports of IEEE 802.3bt (PoE++) offering up to 60W per port as well as 20 ports of IEEE 802.3at delivering up to 30 W per port to meet a variety of WiFi 6/6E AP adoptions. It is also ready for future WiFi 7 technology deployments. Maximize the performance of the 700 W system power budget with a wide range of choices from Zyxel WiFi 6/6E AP family.
NebulaFlex - simply manage it your way!
The XMG1930 Series supports NebulaFlex technology which provides extended flexibility especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides a centralized access for Zyxel products; the local web GUI accesses the full feature sets and all configuration options of your switch from the very first release.
Benefits | Upgrade network with flexible connection choices
The XMG1930 Series Switch supports IEEE 802.3bz standard and includes both 2.5G and 10G port options to provide Multi-Gigabit technology on existing wiring infrastructure designed for standard gigabit protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It's common for Multi-Gigabit switches to operate at different link speed for each individual ports so the XMG1930 Series is designed with a unique 5-color LED providing an intuitive indication of connection speed for each individual ports.
Superior PoE paves the way for high performance WiFi 6 APs
Upgrading business wireless infrastructure to WiFi 6/6E requires a reliable network Switch to provide solid backbone services. The XMG1930-30HP comes with 8 ports of IEEE 802.3bt (PoE++) offering up to 60W per port as well as 20 ports of IEEE 802.3at delivering up to 30 W per port to meet a variety of WiFi 6/6E AP adoptions. It is also ready for future WiFi 7 technology deployments. Maximize the performance of the 700 W system power budget with a wide range of choices from Zyxel WiFi 6/6E AP family.
NebulaFlex - simply manage it your way!
The XMG1930 Series supports NebulaFlex technology which provides extended flexibility especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides a centralized access for Zyxel products; the local web GUI accesses the full feature sets and all configuration options of your switch from the very first release.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10GBase-X
Network Technology
2.5GBase-T
Network Technology
10GBase-T
Networking standards
IEEE 802.3ae
Networking standards
IEEE 802.1s
Networking standards
IEEE 802.3bz
Networking standards
IEEE 802.1x
Networking standards
IEEE 802.1w
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.1D
Networking standards
IEEE 802.3an
Networking standards
IEEE 802.1ab
Networking standards
IEEE 802.3z
Networking standards
IEEE 802.1p
Package Contents
- XMG1930-30HP Ethernet Switch
- Power Cord
- Power Adapter
- Rack Mounting Kit
Port/Expansion Slot Details
2 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
4 x 2.5 Gigabit Ethernet PoE++
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet PoE++
Port/Expansion Slot Details
20 x 2.5 Gigabit Ethernet PoE+
Power consumption
864.10 W
Power source
Power Adapter
Product Name
XMG1930-30HP Ethernet Switch
Product Series
XMG1930
Product Type
Ethernet Switch
Weight (Approximate)
10.69 lb
Width
17.4"
