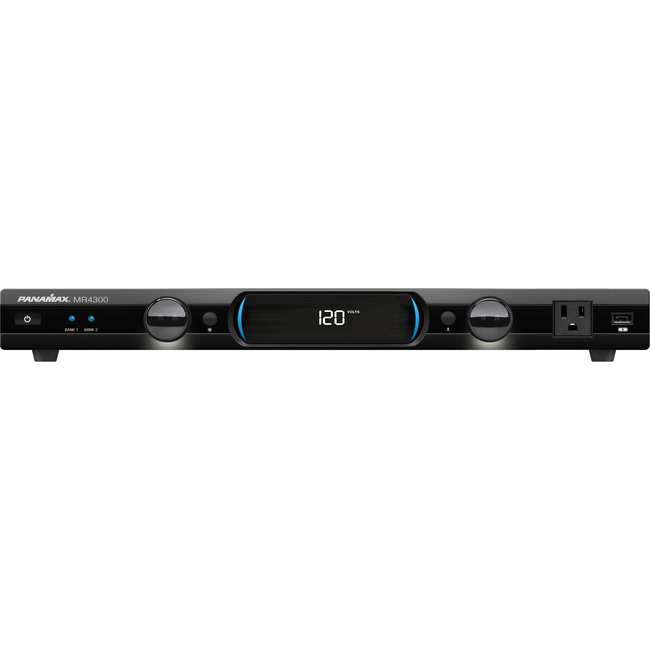

Panamax MR4300 Line Conditioner

AC Protection:

• Voltage Protection Rating (UL 1449 3rd Edition 3000A): 330V
• Under Voltage Shutoff: 100V ±2V
• Thermal Fusing
• Response Time < 1ns
• Protect or Disconnect Circuitry
• Over Voltage Shutoff: 135V ±2V
• Initial Clamping Level: 200V Peak
• Automatic Voltage Monitoring Circuit

LAN Protection:

• Wires Protected: 8-Wires
• Compatibility: 10/100/1000bT
• Clamping Level: 62V ± 6V @ 1 mA

TEL Protection:

• Wires Protected: 2 Wires 1 Pair (4 5)
• Fuseless/Auto-Resetting
• Clamping Level: 260V

Universal Coax Protection:

• Shielded
• Insertion Loss: < 0.5 dB
• HD 1080 i/p Ready
• Frequency Range: 0 MHz - 2.2 GHz
• Connections: Female "F" Gold Plated
• Clamping Level: 75V
• Bidirectional

Panamax's MR Family of products offers several layers of surge protection. Panamax's patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.
