Veracity Outdoor Ethernet and POE Extender
Veracity Outdoor Ethernet and POE Extender
| $263.52 | Retail $294.00 |
By:
Veracity
Manufacturer:
Veracity USA, Inc
Product ID:
176910
Item:
VOR-ORM-XT
UPC Code:
017530627188
Our Part #
43222608
Condition
New
$263.52EA
$294.00
$294.00
Availability
Only 4 Left In Stock
Product description

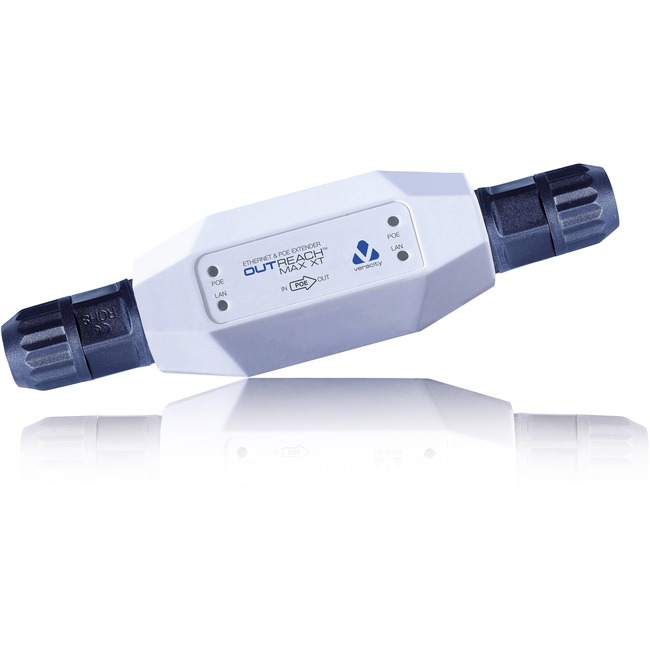

Veracity Outdoor Ethernet and POE Extender
Specifications
UPC Alternates
017530627188 818214944139 892314002302 999999387653
Additional Information
OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts.
Environmental:
Ambient temperature -40C to 60C / -40F to 140F
Relative humidity up to 85% non-condensing
Ingress protection to IP66 enclosure polycarbonate
IP Video and Security:
OUTREACH Max XT Ethernet extenders are ideal for IP video applications as they eliminate the one disadvantage that network cameras have compared to older analogue cameras: the limited cable length. As POE is becoming universal in digital video installations Cat 5 cable extension is as simple as connecting an OUTREACH Max XT wherever it is needed.
OUTREACH Max XT can also be used to upgrade legacy twisted-pair video installations to IP with POE where the Cat 5 infrastructure for a network is already in place but run lengths exceed the 100 meter limit for Ethernet.
PTZ cameras heater/blower units and door interlocks are all examples of products that are adopting the extended-power POE Plus standard that OUTREACH Max XT also supports.
Wireless networking:
Like IP cameras wireless access points (WAPs) are ideally suited to POE as they must be positioned optimally in locations that are often inaccessible or remote. Using OUTREACH Max XT a WAP - or Bluetooth access point or RFID reader - can be located just where it is needed for optimal coverage.
High-power radios and 802.11n APs can take advantage of the POE Plus power which OUTREACH Max XT supports.
Extending non-POE networks:
OUTREACH Max XT can be used in combination with OUTREACH Lite XT to extend networks without PoE from 300 meters to over 2 kilometers.
Brand Name
Veracity
Height
1.2"
Length
4.9"
Limited Warranty
1 Year
Manufacturer
Veracity USA Inc
Manufacturer Part Number
VOR-ORM-XT
Manufacturer Website Address
http://www.veracityusa.com
Marketing Information
Outdoor Ethernet and POE Extender
OUTREACH Max XT lets you locate your external IP camera or wireless transmitter right where you want it without being restricted by the 328 feet limit for Ethernet cables.
Based on Veracity's established OUTREACH Max extender compatibility with regular 802.3af POE and 802.3at POE plus is assured with no configuration or setup required.
Its rugged and streamlined enclosure features IP66-rated connector covers that assemble easily around conventionally terminated Cat 5e and Cat 6 cables.
Guaranteed operation over an extended temperature range and versatile mounting options mean OUTREACH Max XT is suited to a wide range of installation scenarios.
And inter-building network links or extension to non-POE equipment is also supported with Veracity's OUTREACH Lite XT model.
OUTREACH Max XT lets you locate your external IP camera or wireless transmitter right where you want it without being restricted by the 328 feet limit for Ethernet cables.
Based on Veracity's established OUTREACH Max extender compatibility with regular 802.3af POE and 802.3at POE plus is assured with no configuration or setup required.
Its rugged and streamlined enclosure features IP66-rated connector covers that assemble easily around conventionally terminated Cat 5e and Cat 6 cables.
Guaranteed operation over an extended temperature range and versatile mounting options mean OUTREACH Max XT is suited to a wide range of installation scenarios.
And inter-building network links or extension to non-POE equipment is also supported with Veracity's OUTREACH Lite XT model.
Package Contents
- Outdoor Ethernet and POE Extender
- IP66-Rated Connector Covers
- 2/4 Bolt Wall-Mounting Bracket
Product Name
Outdoor Ethernet and POE Extender
Product Type
Network Extender
Width
2"
