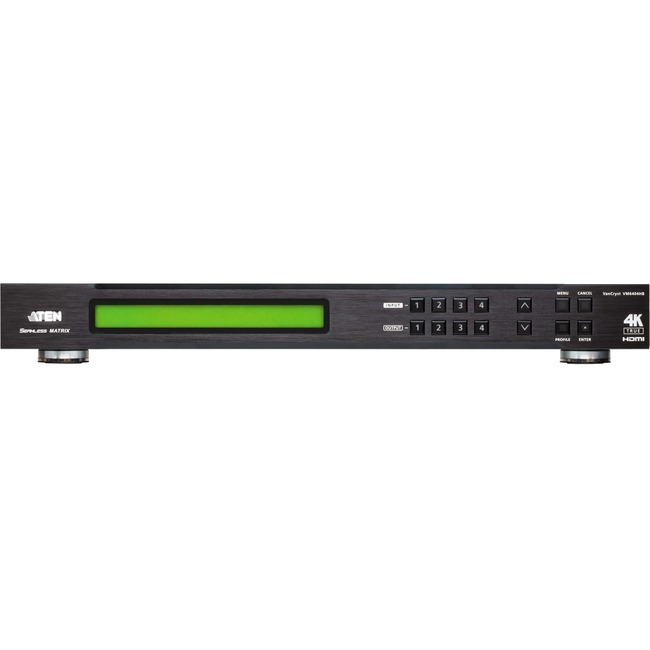

ATEN 4 x 4 True 4K HDMI Matrix Switch with Scaler
ATEN 4 x 4 True 4K HDMI Matrix Switch with Scaler - 3840 � 2160 - 4K - Twisted Pair - 4 x 4 - Display - 4 x HDMI Out
| $2,948.44 | Retail $4,500.00 |
- 4 x 4 HDMI input/output connections
- Multiple Control Methods - system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet
- View and control via ATEN Video Matrix Control App in a swift and agile way
- True 4K Resolutions -handles uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)
- 4K Scaler -features a 4K video scaler to convert input resolutions to the optimum display resolutions
- Seamless Switch™ -features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
- Video Wall -allows you to create custom video wall layouts via intuitive web GUI
- True 4K EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- FrameSync -prevents image tearing by synchronizing the scaler output frame rat
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
176934
Item:
VM6404HB
Our Part #
7VZ001
Condition
New
$2,948.44EA
$4,500.00
$4,500.00
Availability
Only 2 Left In Stock
You may be also interested
Product description
ATEN 4 x 4 True 4K HDMI Matrix Switch with Scaler - 3840 � 2160 - 4K - Twisted Pair - 4 x 4 - Display - 4 x HDMI Out
3840 � 2160 - 4K - Twisted Pair - 4 x 4 - Display - 4 x HDMI Out
Specifications
Brand Name
ATEN
Connectivity technology
Cable
Depth
17"
Device Supported
Display
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Desktop
Graphics Modes
4K
Height
1.7"
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VM6404HB
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR guaranteeing crystal-clear images across four displays.
The VM6404HB supports 4K@60Hz HDMI 2.0 and HDCP 2.2 and features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams real-time control and stable signal transmissions. With a built-in high-performance scaler the VM6404HB easily converts various input resolutions into various output display resolutions giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM6404HB is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up - such as for stage presentations digital classroom video conference rooms and any installation that requires real-time synchronization.
Maximum Operating Distance
118.11"
Maximum Video Resolution
3840 � 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
4
Package Contents
- 4 x 4 True 4K HDMI Matrix Switch with Scaler
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x IR Receiver
- 1 x Mounting Kit
- 1 x User Instructions
Packaged Quantity
1
Product Line
VanCryst
Product Name
4 x 4 True 4K HDMI Matrix Switch with Scaler
Product Type
Audio/Video Switchbox
Weight (Approximate)
7.76 lb
Width
10.3"
