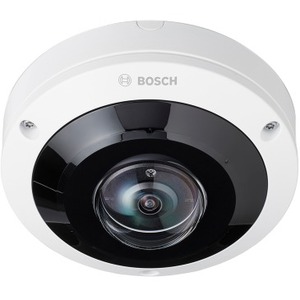

Bosch FlexiDome 12 Megapixel Indoor/Outdoor Full HD Network Camera - Color, Monochrome - Dome
Bosch FlexiDome 12 Megapixel Indoor/Outdoor Full HD Network Camera - Color, Monochrome - Dome - 65.62 ft Infrared Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 1.26 mm Fixed Lens - CMOS - HDMI - Surface Mount, Junction Box Mount, Gang Box Mount, Conduit Mount - IK10 - IP66 - Vandal Resistant, Weather Resistant, Scratch Resistant, UV Resistant, Water Proof, Impact Resistant, Rain Resistant, Dust Resistant
| $1,460.59 |
- Network camera - Helps achieve high-quality video results
- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 1.26 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/2.0 maximum aperture for reliable, detailed, and sharp output with added dependability
- Up to 65.62 ft of night vision
- Full HD recording format for a lively video quality experience with maximum dependability
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
By:
Bosch
Manufacturer:
The Bosch Group
Product ID:
176948
Item:
NDS-5704-F360LE
UPC Code:
800549974141
Our Part #
08KQ84
Condition
New
$1,460.59EA
Availability
Only 5 Left In Stock
Product description
Bosch FlexiDome 12 Megapixel Indoor/Outdoor Full HD Network Camera - Color, Monochrome - Dome - 65.62 ft Infrared Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 1.26 mm Fixed Lens - CMOS - HDMI - Surface Mount, Junction Box Mount, Gang Box Mount, Conduit Mount - IK10 - IP66 - Vandal Resistant, Weather Resistant, Scratch Resistant, UV Resistant, Water Proof, Impact Resistant, Rain Resistant, Dust Resistant
65.62 ft Infrared Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 1.26 mm Fixed Lens - CMOS - HDMI - Surface Mount, Junction Box Mount, Gang Box Mount, Conduit Mount - IK10 - IP66 - Vandal Resistant, Weather Resistant, Scratch Resistant, UV Resistant, Water Proof, Impact Resistant, Rain Resistant, Dust Resistant
Specifications
Field of View
182° (H) x 182° (V)
Impact Protection Rating
IK10
Indoor/Outdoor
Indoor/Outdoor
Ingress Protection Rating
IP66
Lens Mount Type
Board Mount
Maximum Aperture
f/2.0
Minimum Operating Temperature
-40°F (-40°C)
Night Vision Distance
65.62 ft
Night Vision Type
Infrared
Operating Humidity
100%
UPC Alternates
800549974141
Brand Name
Bosch
Color Supported
Color
Color Supported
Monochrome
Connectivity technology
Wired
Country of origin
Thailand
Diameter
5.8"
Durability
Weather Resistant
Durability
Impact Resistant
Durability
Vandal Resistant
Durability
UV Resistant
Durability
Scratch Resistant
Durability
Water Proof
Durability
Rain Resistant
Durability
Dust Resistant
Effective Camera Resolution
12 Megapixel
Environmental Certification
EU WEEE
Environmental Certification
EU RoHS
Environmental Certification
China RoHS
Environmentally Friendly
Yes
Features
Noise Detection
Features
Privacy Masking
Features
ePTZ
Features
Cross Line Detection
Features
White Balance
Features
Wide Dynamic Range
Features
Noise Reduction
Features
Region of Interest
Features
Built-in Microphone
Features
SD Card Local Storage
Form factor
Dome
Height
2.8"
Image Sensor Type
CMOS
Input voltage
12 V DC
Input voltage
24 V AC
Lens Type
Fixed
Longest Shutter Speed
1/25 Second
Manufacturer
The Bosch Group
Manufacturer Part Number
NDS-5704-F360LE
Manufacturer Website Address
http://www.bosch.com
Marketing Information
The NDS-5704-F360LE is a discreet and aesthetic panoramic camera for indoor and outdoor surveillance.
Its stereographic panoramic lens provides full 360° coverage without blind spots ideal for surveillance applications that require wide area coverage in a single detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally with its wide range of inputs and outputs such as Alarm and video output for HDMI-compatible devices it can be used for any application.
The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Functions
12MP sensor resolution
The camera offers a 12MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 9MP effective resolution.
Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision produces an extremely powerful surveillance tool which enriches full situational awareness. With intelligent tracking movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another greatly simplifying movement analysis.
The system reliably detects tracks and analyzes objects and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow wind (moving trees) rain hail and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Camera Trainer
Based on examples of target objects and non-target objects the Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.
A free of charge license is required to activate the Camera Trainer program.
Its stereographic panoramic lens provides full 360° coverage without blind spots ideal for surveillance applications that require wide area coverage in a single detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally with its wide range of inputs and outputs such as Alarm and video output for HDMI-compatible devices it can be used for any application.
The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Functions
12MP sensor resolution
The camera offers a 12MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 9MP effective resolution.
Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision produces an extremely powerful surveillance tool which enriches full situational awareness. With intelligent tracking movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another greatly simplifying movement analysis.
The system reliably detects tracks and analyzes objects and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow wind (moving trees) rain hail and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Camera Trainer
Based on examples of target objects and non-target objects the Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.
A free of charge license is required to activate the Camera Trainer program.
Maximum Focal Length
1.26 mm
Maximum frame rate
30 fps
Maximum Operating Temperature
122°F (50°C)
Maximum Video Resolution
1920 x 1080
Mount Type
Conduit Mount
Mount Type
Gang Box Mount
Mount Type
Surface Mount
Mount Type
Junction Box Mount
Package Contents
- FLEXIDOME Panoramic 5100i IR
- 1 x Camera Base
- 1 x Camera dome cover
- 1 x TR20 Allen key for camera installation
- 1 x 8-pin Audio and I/O connector
- 1 x 2-pin power connector
- 1 x RJ-45 punch-through aid
- 2 x M20 rubber grommets (attached to the camera)
- 1 x Quick installation guide
- 1 x Safety information
- 3 x Installer UX labels
- 1 x Mount plate
Power source type
DC
Power source type
PoE
Power source type
AC
Product color
White
Product Family
FlexiDome 5100i
Product Line
FlexiDome
Product Name
FLEXIDOME Panoramic 5100i IR
Product Series
5100i
Product Type
Network Camera
Recording Formats
Full HD
Shortest Shutter Speed
1/500 Second
Storage Type
Memory Card
Video Formats
MJPEG
Video Formats
H.265
Video Formats
H.264
Weight (Approximate)
1.81 lb
