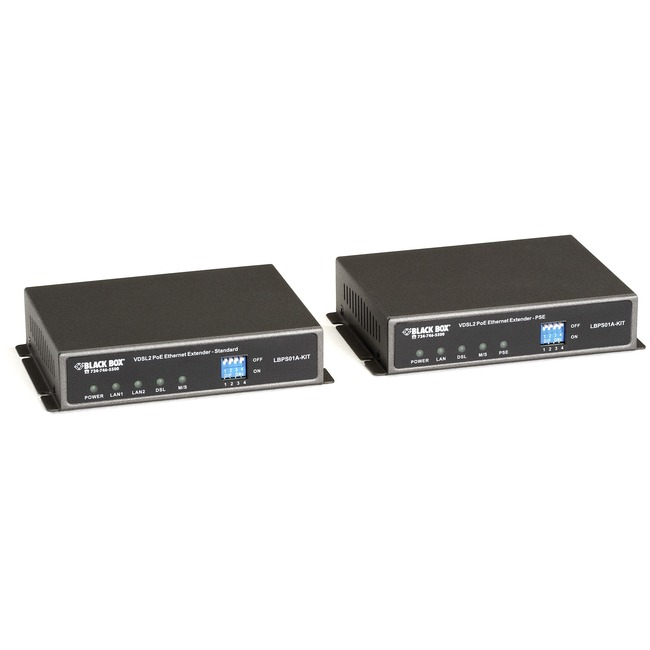

Black Box PoE Ethernet Extender Kit

• Kit includes two extenders-one of which acts as PoE power source equipment (PSE) the other is a standard extender.
• Extends 10BASE-T/100BASE-TX Ethernet across ordinary voice-grade copper wire.
• Supports 100-Mbps downstream and 60-Mbps upstream for distances up to 500 feet (152.4 m).
• Supports distances of up to 4000 feet (1219 m) at 28/0.3 Mbps.
• Autosensing autonegotiating 10-/100-Mbps Ethernet port.
• Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
• DIP switches for master/slave configuration.
• Low latency for video and voice applications.

This high-speed Ethernet extender enables you to power PoE devices without the need for an additional power outlet.

The VDSL2 PoE Ethernet Extender Kit features two extenders one of which is a PoE PSE device which supplies power to a PoE PD device such as an IP camera or wireless access point. This enables you to seamlessly integrate the extenders into a PoE infrastructure and eliminates the need to supply a spare power outlet for distant network devices.

Installation is easy - just connect the extenders then configure them using simple DIP switches.

This product is covered by one or more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838.

Ethernet Extender Kit PoE. Extends 10/100Mbps Ethernet RJ45 over copper or CATx line interface RJ45. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension campus LAN expansion.

This kit includes a pair of auto-rate Ethernet extenders using a standard 2-wire connection which simplifies your life and provides a cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure.

These 10BASE-T/100BASE-TX Ethernet Extenders use VDSL2 technology to provide an easy inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 100-240VAC power supplies. The Kit features two extenders one of which is a PoE PSE device which supplies power (802.3af) to a PoE PD device such as an IP camera or wireless access point.

• 1 x VDSL2 PoE Ethernet Extender PSE (PSE Unit)
• 1 x VDSL2 PoE Ethernet Extender PSE (Standard Unit)
• 1 x 12V DC 2A Power Adapter for VDSL2 PoE Ethernet Extender PSE (PSE Unit)
• 1 x 5V DC 1A Power Adapter for VDSL2 PoE Ethernet Extender PSE (Standard Unit)
• 1 x CD Containing the User's Manual
