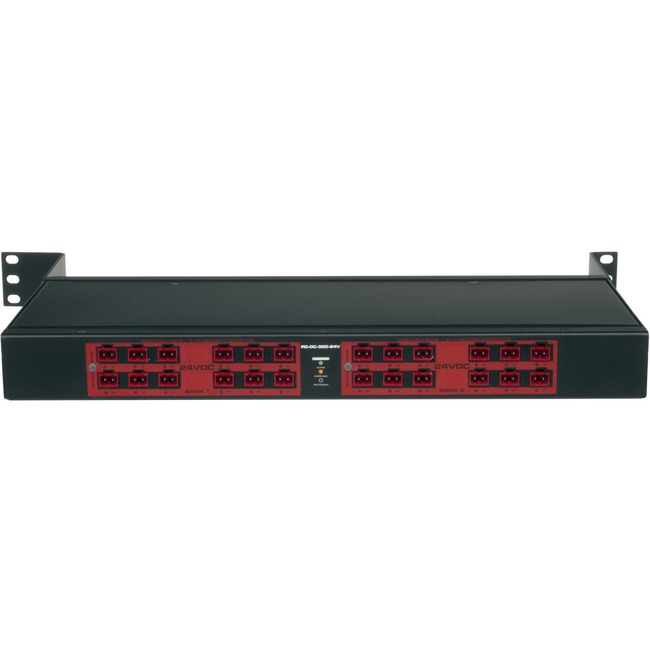

Middle Atlantic PD-DC-300-24V 24-Outlets PDU
Middle Atlantic PD-DC-300-24V 24-Outlets PDU - NEMA 5-15P - 24 x Screw Terminal - 120 V AC, 230 V AC - 0U/1U - Rack-mountable
| $923.09 |
- Industry-leading number of outputs with power distributed to as many as 24 devices
- Maximum current capacity, up to 300W of power: 24V, 12.5A Max (300W)
- Reliable multi-level protection on both AC input and DC outputs to ensure maximum uptime: MOV surge and overload protection on the AC input, Individual redundancy built in with auto-resetting PTC overload protection on each individual output
- Greater mounting flexibility with multi-mount design that fits in 1 rackspace or can mount at the back or side of the rack simply by rotating mounting brackets
- Color-coded screw terminal connectors with industry standard 12V and 24V and polarity labeling for easy identification
- 120V-230V input supports both North American and European installations
- LED indicator lights alerting maximum capacity on each voltage bank
- Leads trimmed to suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow <
By:
Middle Atlantic
Manufacturer:
Legrand Group
Product ID:
178167
Item:
PD-DC-300-24V
Our Part #
39121017
Condition
New
$923.09EA
Availability
Only 1 Left In Stock
You may be also interested
Product description
Middle Atlantic PD-DC-300-24V 24-Outlets PDU - NEMA 5-15P - 24 x Screw Terminal - 120 V AC, 230 V AC - 0U/1U - Rack-mountable
NEMA 5-15P - 24 x Screw Terminal - 120 V AC, 230 V AC - 0U/1U - Rack-mountable
Specifications
Plug/Connector Detail
1 x NEMA 5-15P
Power Rating (Watt)
300 W
Receptacle Detail
24 x Screw Terminal
Brand Name
Middle Atlantic
Depth
7.3"
Environmental Certification
RoHS
Environmental Certification
EU RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
12.50 A
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
120 V AC - 230 V AC
Limited Warranty
3 Year
Manufacturer
Legrand Group
Manufacturer Part Number
PD-DC-300-24V
Manufacturer Website Address
http://www.legrand.us
Marketing Information
Optimize any installation with the industry-leading power capacity of the fixed voltage DC Power Distribution line. These solutions not only remove messy space-consuming unreliable wall warts and other power clutter from the design but also provide maximum power to support a multitude of 12V devices. The 300W unit provides high current capacity to an extensive number of 12V outputs maximizing the same voltage in the single unit. The multi-mount design can be installed in an available 1RU space or at the back or side of the rack for zero-U mounting providing ultimate installation flexibility. Promoting enhanced design of system power demands while still providing a seamless install experience the 300W DC Power Distribution line is innovatively engineered for multiple applications spanning markets from North America to Europe.
Mount Type
Rack-mountable
Output voltage
24 V
Package Contents
- PD-DC-300-24V 24-Outlets PDU
- Flexible Mounting Hardware
- Color-coded Screw Terminal Connectors to Connect Devices
- 1 x 6ft IEC Power Cord
Plug/Connector Type
NEMA 5-15P
Product Name
PD-DC-300-24V 24-Outlets PDU
Product Type
PDU
Protection Type
Overload Protection
Protection Type
Surge Protection
Rack Height
0U/1U
Receptacle Type
Screw Terminal
Width
19"
