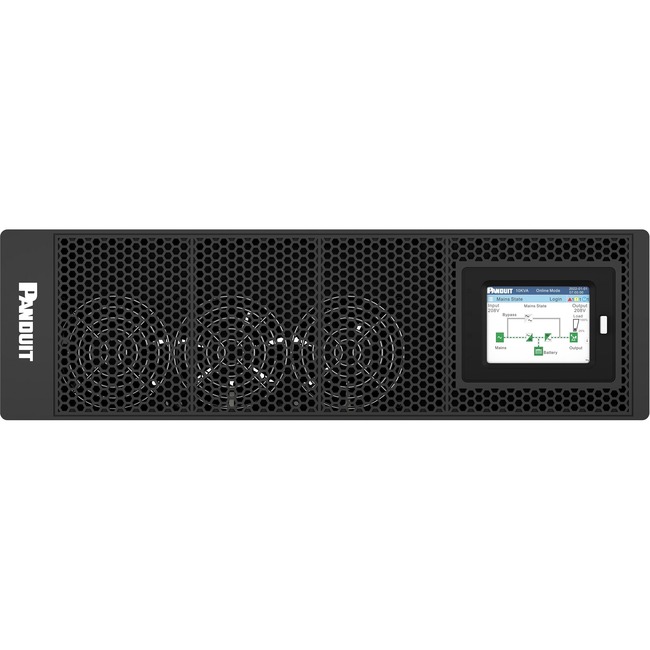

Panduit SmartZone U05N11V 5000VA Rack/Tower UPS
Panduit SmartZone U05N11V 5000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R
| $5,398.50 | Retail $7,948.08 |
- Rack/Tower convertible: Supports rack/tower installation with rotatable colorful touchscreen LCD panel
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-280Vac covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 98%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery
By:
Panduit
Manufacturer:
PANDUIT CORP
Product ID:
178238
Item:
U05N11V
Our Part #
02KN89
Condition
New
$5,398.50EA
$7,948.08
$7,948.08
Availability
Only 2 Left In Stock
Product description
Panduit SmartZone U05N11V 5000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R
2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R
Specifications
Backup/Run Time With External Battery Cabinet (Full Load)
14.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load)
37.10 Minute
DC System Voltage
240 V DC
Load Capacity (VA)
5000 VA
Load Capacity (W)
5000 W
Maximum Operating Elevation
9842.52 ft
Output Frequency
60 Hz
Phase
Single Phase
Receptacle Detail
4 x NEMA L6-30R
Storage Temperature
-13°F (-25°C) - 131°F (55°C)
Waveform Type
Pure Sine Wave
Additional Warranty Information
- 3 Years for UPS & EBP
- 2 Years for Battery
Application/Usage
Edge Computing
Application/Usage
Data Center
Application/Usage
IT Equipment
Application/Usage
Computer
Battery capacity
9000 mAh
Battery Characteristics
Valve-regulated Maintenance-free Hot-swappable
Battery Chemistry
Sealed Lead Acid (VRLA)
Battery life
5 Year
Battery Size
12V
Brand Name
Panduit
Dataline Protection
RJ-45
Depth
26.2"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmental Certification
ENERGY STAR 2.0
Form factor
Rail Mountable
Form factor
Rack/Tower
Height
5.2"
Hot Swappable
Yes
Input frequency
70 Hz
Input voltage
120 V AC
Input voltage
230 V AC
Input Voltage Range
185 V AC - 264 V AC
Input Voltage Range
110 V AC - 285 V AC
Limited Warranty
3 Year
Load Capacity
5000 VA/5000 W
Manufacturer
PANDUIT CORP
Manufacturer Part Number
U05N11V
Manufacturer Website Address
http://www.panduit.com
Marketing Information
The Panduit® SmartZone™ UPS with maintenance free VRLA battery 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT Infrastructure.
Maximum Operating Temperature
104°F (40°C)
Number of Batteries
20
Output voltage
240 V AC
Output voltage
208 V AC
Package Contents
- SmartZone U05N11V 5000VA Rack/Tower UPS
- Intelligent Network Management Card
Plug/Connector Type
NEMA L6-30R
Product color
Black
Product Line
SmartZone
Product Name
SmartZone U05N11V 5000VA Rack/Tower UPS
Product Type
Double Conversion Online UPS
Rack Height
2U
Software Included
SmartZone Cloud Ready
Sound Emission
55 dB
Status Indicators
Colorful LCD with four buttons and LED indicators
Surge energy rating
600 J
Thermal Dissipation
312.71 W
Transfer Time
0 ns
Typical Battery Recharge Time
6 Hour
Weight (Approximate)
187.39 lb
Width
17.3"
