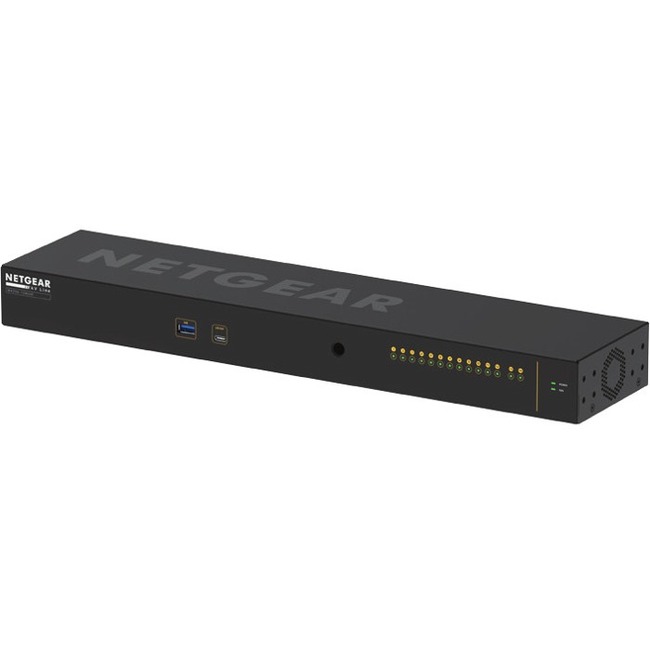

Netgear AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X)
Netgear AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X) - 12 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - Lifetime Limited Warranty
| $1,024.22 | Retail $1,528.72 |
- Expand your network capacity with the help of 12 networking ports and transfer your data quickly and easily
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
By:
Netgear
Manufacturer:
Netgear, Inc
Product ID:
178277
Item:
MSM4214X-100NAS
UPC Code:
606449149654
Our Part #
8AZ923
Condition
New
$1,024.22EA
$1,528.72
$1,528.72
Availability
Only 4 Left In Stock
You may be also interested
Product description
Netgear AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X) - 12 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - Lifetime Limited Warranty
12 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - Lifetime Limited Warranty
Specifications
Compatible Rack Unit
1U
Number of Total Expansion Slots
2
PoE (RJ-45) Port
No
Power Plug Type
Type C
Total Number of Network Ports
12
UPC Alternates
606449149654
Brand Name
Netgear
Country of origin
Thailand
Depth
3.9"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmental Certification
REACH
Environmental Certification
ErP
Ethernet Technology
10 Gigabit Ethernet
Ethernet Technology
2.5 Gigabit Ethernet
Expansion Slot Type
SFP+
Form factor
Rack-mountable
Height
1.7"
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
Netgear Inc
Manufacturer Part Number
MSM4214X-100NAS
Manufacturer Website Address
http://www.netgear.com
Marketing Information
Switching Engineered for AV over IP
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
NETGEAR M4250 series key features:
- Ranges from 8 to 16 ports with a variety of PoE+ and Ultra90 PoE++ options for 15.4W 30W 60W 75W and 90W AVoIP endpoints
- Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
- Also includes 12-port multi-gigabit Ethernet and 16-port 1G/10G fiber models for plug and play aggregation in a star topology
- Designed for a clean integration with traditionalrack-mounted AV equipment
- The M4250 switches come with a sleek black display panel with status in front and all cabling plus additional status in the back
- Reversed mounting is possible when ports are desired on the front of the rack
- A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
- Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
- Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mountingoptionsoutside the rack as well
- Pre-configured for audio and video over IP out of the box the M4250 switches enable encoders and decoders to be connected with zero configuration
- When more configuration is required an AV web-based GUI is available at the switch IP address:8080
- This interface has been specially designed for AV installers with specific AV-related controls made more accessible and with port-based profiles
- For audio profiles for Dante Q-SYS and AES67 are built-in as well as an AVB profile (AVB license sold separately
- For video the M4250 offers profiles for NVX SVSI Q-SYS NDI Kramer KDS Aurora Multimedia ZeeVee Atlona Dante and SDVoE
- Other AV CODECs and manufactures are supported as well as audio/video/ control mixed profiles
- To further simplify star deployments NETGEAR IGMP Plus™ brings multicast automation between all M4250 switches and with M4300/M4500
- Simply connect the switches together and you are done!
- All M4250 switches share the same high-end NETGEAR Layer 2 / Layer 3 switching engine for a consistent experience
- All switches in the M4250 series have another main IT web-based GUI for midsize Enterprise campus networks IoT and IPTV
- Additional features include static RIP and PIM-SM DM and SSM multicast routing DHCP Server and PTPv2 Transparent Clock (1-step E2E)
- AVB is the only feature requiring a license all other advanced features are available license-free
- Advanced classifier-based time-based hardware implementation for L2 (MAC) L3 (IP) and L4 (UDP/TCP transport ports)
- Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
- Voice VLAN with SIP H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
- Efficient authentication tiering with successive DOT1X MAB and Captive Portal methods for streamlined BYOD
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10GBase-X
Network Technology
2.5GBase-T
Plug/Connector Type
IEC 60320 C14
Port/Expansion Slot Details
2 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
12 x 2.5 Gigabit Ethernet Network
Power source
Power Supply
Product Line
AV Line
Product Model
M4250-12M2XF
Product Name
AV Line M4250-12M2XF 12x2.5G and 2xSFP+ Managed Switch (MSM4214X)
Product Type
Ethernet Switch
Width
17.3"
