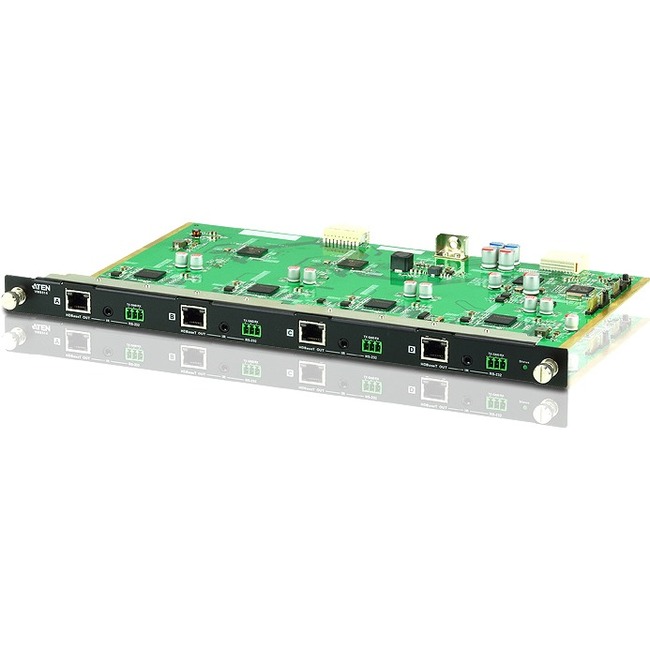

ATEN 4-Port HDBaseT Output Board-TAA Compliant
ATEN 4-Port HDBaseT Output Board-TAA Compliant - 9.4" Width x 0.9" Height x 13.9" Length - 1 - Metal
| $1,774.03 | Retail $1,785.00 |
- 4-port HDBaseT Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity - extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming - resists signal interference during video transmission using HDBaseT technology
- Connected to VE805R:Seamless Switch™ - features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions, Video Wall - features configurable video wall profiles for custom layouts via point-n-click web GUI
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
182179
Item:
VM8514
UPC Code:
672792006241
Our Part #
1N0146
Condition
New
$1,774.03EA
$1,785.00
$1,785.00
Availability
Only 1 Left In Stock
Product description
ATEN 4-Port HDBaseT Output Board-TAA Compliant - 9.4" Width x 0.9" Height x 13.9" Length - 1 - Metal
9.4" Width x 0.9" Height x 13.9" Length - 1 - Metal
Specifications
Material Details
- Metal - Housing
Product Material
Metal
UPC Alternates
672792006241
Application/Usage
Transmitter
Application/Usage
Satellite Receiver
Brand Name
ATEN
Country of origin
Taiwan
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Height
0.9"
Length
13.9"
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VM8514
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
When the VM8514 HDBaseT Output Board is used in conjunction with the VE805R HDBaseT receiver it features Seamless Switch™ technology and video wall functionality. ATEN's Seamless Switch™ technology provides video switching in real-time with a built in scaler that handles different video resolutions across different displays and video wall features that allow you to configure up 32 profiles for custom layouts via the point-n-click web GUI.
Package Contents
- 4-Port HDBaseT Output Board
- 4 x Terminal Block Connectors
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x User Instructions
Packaged Quantity
1
Product Name
4-Port HDBaseT Output Board
Product Type
HDBaseT Output Board
Weight (Approximate)
2.14 lb
Width
9.4"
