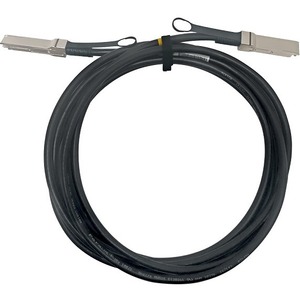

NVIDIA MCP1650-H001E30 DAC Cable IB HDR up to 200Gb/s QSFP56 1m
NVIDIA MCP1650-H001E30 DAC Cable IB HDR up to 200Gb/s QSFP56 1m - 3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 1 x QSFP56 Network - 200 Gbit/s - LSZH - 30 AWG - Black
| $227.95 | Retail $305.00 |
- Experience a simpler way to connect devices with the entire business network
- Features QSFP56 cable type for your convenience and desired usability
- For extra fire safety, the cable features a halogen-free jacket
- Fully compatible with network devices
By:
NVIDIA
Manufacturer:
NVIDIA Corporation
Product ID:
182227
Item:
MCP1650-H001E30
Our Part #
2GH607
Condition
New
$227.95EA
$305.00
$305.00
Availability
Only 20 Left In Stock
Product description
NVIDIA MCP1650-H001E30 DAC Cable IB HDR up to 200Gb/s QSFP56 1m - 3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 1 x QSFP56 Network - 200 Gbit/s - LSZH - 30 AWG - Black
3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x QSFP56 Network - Second End: 1 x QSFP56 Network - 200 Gbit/s - LSZH - 30 AWG - Black
Specifications
Color Details
Black - Pulltab
Connector on First End Details
1 x QSFP56 Network
Connector Type on First End
QSFP56 Network
Material Details
Copper - Cable
Copper - Pairs
Number of Pairs
8
Product Material
Copper
American Wire Gauge
30 AWG
Brand Name
NVIDIA
Cable length
3.28 ft
Cable type
QSFP56
Data transfer rate
200 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Lead-free
Features
HDR Support
Features
Halogen Free
Features
Bendable
Features
Passive
Jacket Type
LSZH
Limited Warranty
1 Year
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MCP1650-H001E30
Manufacturer Website Address
http://www.nvidia.com
Marketing Information
NVIDIA MCP1650-H001E30 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1m Black Pulltab 30AWG
HDR 200Gb/s QSFP56 Direct Attach Copper Cable
NVIDIA DAC cables are high speed cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information which can be read by the host system.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Highlights
- IBTA InfiniBand HDR compliant
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- SFF-8665 compliant
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2C management interface
Product color
Black
Product Line
LinkX
Product Name
MCP1650-H001E30 DAC Cable IB HDR up to 200Gb/s QSFP56 1m
Product Type
Network Cable
