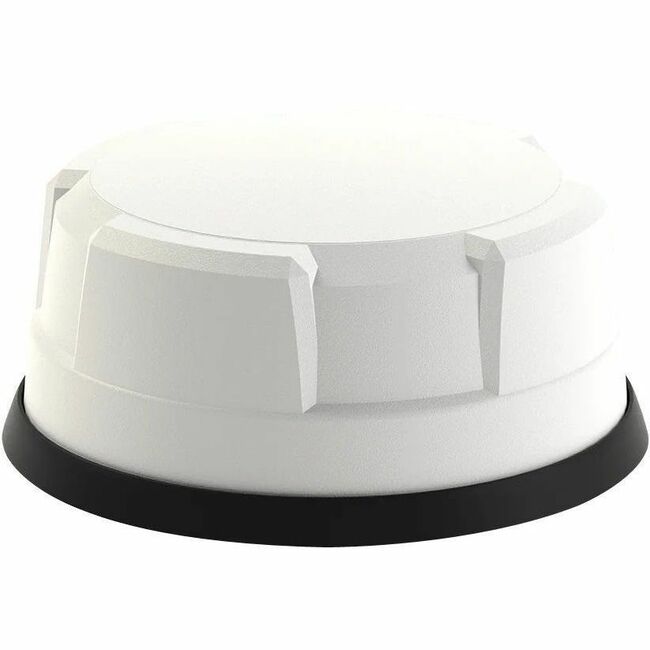

Panorama Antennas LG-IN2607 Antenna
Panorama Antennas LG-IN2607 Antenna - 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 1562 MHz to 1612 MHZ - 26 dB - Wireless Data Network, Cellular Network, GPS, Wireless Router - White - Panel Mount - Omni-directional - SMA Connector
| $394.44 |
- Receive signals from multiple directions with this omnidirectional antenna
- Offers up to 26 dB gain
- Dramatically enhance the performance of wireless data network with this antenna
- Antenna can be mounted as panel mount
By:
Panorama Antennas
Manufacturer:
Panorama Antennas Ltd
Product ID:
182304
Item:
LG-IN2607-W
Our Part #
43221706
Condition
New
$394.44EA
Availability
Currently out of stock
You may be also interested
Product description
Panorama Antennas LG-IN2607 Antenna - 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 1562 MHz to 1612 MHZ - 26 dB - Wireless Data Network, Cellular Network, GPS, Wireless Router - White - Panel Mount - Omni-directional - SMA Connector
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 1562 MHz to 1612 MHZ - 26 dB - Wireless Data Network, Cellular Network, GPS, Wireless Router - White - Panel Mount - Omni-directional - SMA Connector
Specifications
Antenna Gain
26 dB
Directivity
Omni-directional
Operating Frequency Range
617 MHz to 960 MHz
Operating Frequency Range
1562 MHz to 1612 MHZ
Operating Frequency Range
1710 MHz to 6000 MHz
Application/Usage
Wireless Data Network
Application/Usage
Cellular Network
Application/Usage
GPS
Application/Usage
Wireless Router
Brand Name
Panorama Antennas
Compatibility
Cradlepoint R1900 Series Routers
Connector Type
SMA
Diameter
7.09"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Form factor
Panel Mount
Height
3.15"
Manufacturer
Panorama Antennas Ltd
Manufacturer Part Number
LG-IN2607-W
Manufacturer Website Address
http://www.panorama-antennas.com
Marketing Information
The LG-IN2607 is a high performance 4x4 MiMo LTE 2x2 MiMo Dual Band WiFi + 1x Bluetooth function and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 8 functions in 1
- 4x4 MiMo 4G/5G LTE cellular 2x2 MiMo Dual Band WiFi + 1x Bluetooth function GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint R1900 Series Routers
The LG-IN2607 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz + Bluetooth function in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS Glonass Galileo QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2607 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.
Package Contents
- LG-IN2607 Antenna
- Flame Retardant RG174 Cables
- 1 x Halogen Free Flame Retardant Radome
Product color
White
Product Model
LG-IN2607
Product Name
LG-IN2607 Antenna
Product Type
Antenna
