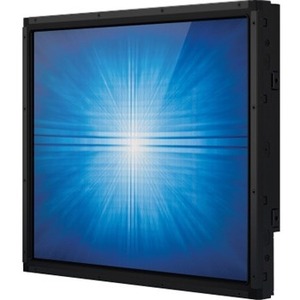

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms
Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - T�V, RoHS, China RoHS, WEEE - 3 Year
| $569.23 | Retail $625.00 |
- The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Enjoy crisp content and energetic hues with the 250 Nit brightness
- Multi-touch activation can be performed with the Projective Capacitive touchscreen technology i.e. you can input from two fingers at a time.
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
By:
Elo
Manufacturer:
Elo Touch Solutions, Inc
Product ID:
182329
Item:
E330225
UPC Code:
815335025969
Our Part #
3GU934
Condition
New
$569.23EA
$625.00
$625.00
Availability
Only 8 Left In Stock
Product description
Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS, WEEE - 3 Year
17" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS, WEEE - 3 Year
Specifications
Touchscreen Type
Projected Capacitive
UPC Alternates
815335025969 818214433275
Aspect ratio
5:4
Backlight Technology
LED
Brand Name
Elo
Brightness
250 Nit
Certifications & Standards
Color Supported
16.7 Million Colors
Contrast Ratio
800:1
Depth
1.7"
Environmental Certification
WEEE
Environmental Certification
T�V
Environmental Certification
China RoHS
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
12.9"
Limited Warranty
3 Year
Manufacturer
Elo Touch Solutions Inc
Manufacturer Part Number
E330225
Manufacturer Website Address
http://www.elotouch.com
Marketing Information
The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the 17-inch open frame is perfect for kiosks casino and amusement retail self-service and industrial automation environments.
Easily integrated.The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.
Touch ready.The 1790L is available with a choice of industry-leading touch technologies in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel single-touch display options include AccuTouch® five-wire resistive IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.
Other features.- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- High quality energy-saving LED panel
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Maximum resolution
1280 x 1024
Mount Type
Rear Mount
Mount Type
Flush Mount
Operating Power Consumption
17.80 W
Package Contents
- 1790L 17" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- Flush Mount Brackets w/Screws
- Japan Class-B info sheet
Product color
Black
Product Model
1790L
Product Name
1790L 17" Open Frame Touchscreen (Rev B)
Product Type
Open-frame LCD Touchscreen Monitor
Response time
5 ms
Screen Mode
SXGA
Viewable Screen Size
17"
Weight (Approximate)
7.94 lb
Width
15.4"
