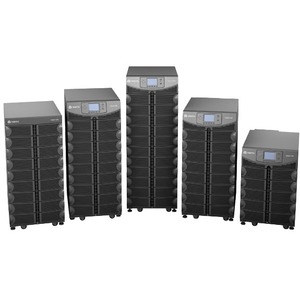

Vertiv Liebert APS 10kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS
Vertiv Liebert APS 10kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS - 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer | 208 and 120VAC Output
| $16,624.29 | Retail $22,827.00 |
- Hot-Swappable FlexPower modules allow scalable runtime and capacity upgrades up to 15kVA N+1.
- User-replaceable modular batteries, power components and controls help reduce maintenance costs.
- It offers redundancy for power continuity and takes modules offline without power disruptions.
- With 0.9 Output Power Factor, this UPS offers more usable power to support critical IT loads.
- Factory installed Intellislot Unity Card and three total intellislot ports for FREE remote management, and support for environmental sensors
By:
Liebert
Manufacturer:
Vertiv
Product ID:
182442
Item:
AS3B0NCVGNNXLKB
Our Part #
7RA897
Condition
New
$16,624.29EA
$22,827.00
$22,827.00
Availability
Only 9999 Left In Stock
Product description
Vertiv Liebert APS 10kVA Scalable to 15kVA N+1 208V Single Phase Modular UPS - 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer | 208 and 120VAC Output
5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer | 208 and 120VAC Output
Specifications
Environmental Sensors
Humidity Sensor
Environmental Sensors
Leak Detection Sensor
Environmental Sensors
Temperature Sensor
Network (RJ-45)
No
Output Frequency
60 Hz
Phase
Single Phase
Additional Information
- Auto Shutdown Software: Trellis™ Power Insight
- Extra Power for Future Expansion: 15kVA/13.5kW N+1
- Relative humidity: % 0 - 95% non-condensing
- Altitude: m (ft) 3000 (10000) @ 25°C (77°F)
- VGA: No
- Output Voltage: 100-240VAC
- Hot Swappable: Yes
Application/Usage
Mission Critical Equipment
Backup/Run Time (Full Load)
5 Minute
Backup/Run Time (Half Load)
15 Minute
Battery Characteristics
Valve Regulated Lead Acid (VRLA)
Brand Name
Liebert
Certifications & Standards
Certifications & Standards:
- UL 1778 5th Ed.
- CSA 22.2
- FCC Part 15 Class B
- FCC
- UL
- c-UL
- NOM
- ANSI C62.41 Category A Level 3
- ISTA 2A
Depth
32"
Environmental Certification
REACH
Environmental Certification
RoHS 2
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack/Tower
Height
27"
Input frequency
70 Hz
Input voltage
230 V AC
Input Voltage Range
120 V AC - 280 V AC
Limited Warranty
2 Year
Load Capacity
10000 VA
Manufacturer
Vertiv
Manufacturer Part Number
AS3B0NCVGNNXLKB
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information
The Vertiv Liebert APS 10kVA Scalable to 15kVA N+1 208V Modular UPS (AS3B0NCVGNNXLKB) is an online double conversion UPS with up to 5 minutes full-load runtime designed for room or row-based applications. It offers redundancy and flexibility for the future while ensuring maximum power availability to your critical systems. The APS modules are hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. With high energy efficiency of up to 92% it supports sustainability and reduces the total cost of ownership (TCO). It has intelligent battery management and can operate in a temporary overload state up to 200% load. For remote management and environmental monitoring a Liebert IntelliSlot Unity Card (IS-UNITY-DP) comes factory installed for FREE Power Insight Software and enables compatibility with Vertiv environmental monitoring sensors.
Marketing Information
The Vertiv Liebert APS 10kVA Scalable to 15kVA N+1 208V Modular UPS (AS3B0NCVGNNXLKB) is an online double conversion UPS with up to 5 minutes full-load runtime designed for room or row-based applications. It offers redundancy and flexibility for the future while ensuring maximum power availability to your critical systems. The APS modules are hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. With high energy efficiency of up to 92% it supports sustainability and reduces the total cost of ownership (TCO). It has intelligent battery management and can operate in a temporary overload state up to 200% load. For remote management and environmental monitoring a Liebert IntelliSlot Unity Card (IS-UNITY-DP) comes factory installed for FREE Power Insight Software and enables compatibility with Vertiv environmental monitoring sensors.
Maximum Operating Temperature
104°F (40°C)
Plug/Connector Type
Hard Wire 3-wire (L-L-G)
Product Name
APS 10kVA Scalable to 15kVA N+1
Product Series
AS3
Product Type
Dual Conversion Online UPS
Status Indicators
LCD Display
Width
17"
