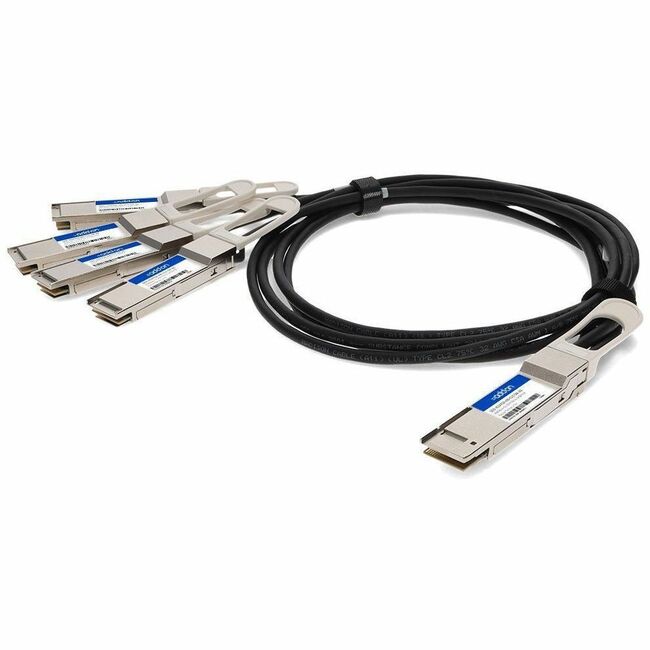

AddOn Twinaxial Network Cable
AddOn Twinaxial Network Cable - 8.20 ft Twinaxial Network Cable for Network Device, Transceiver, Server, Router, Switch - First End: 1 x QSFP-DD Network - Second End: 4 x QSFP28 Network - 200 Gbit/s - Shielding - VW-1 - 28 AWG - 1 - TAA Compliant
| $535.12 | Retail $880.00 |
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
- Supports aggregate data rates of 100 and 200Gbps
- I2C for EEPROM communication
- Pull-to-release slide latch design
- 28AWG through 32AWG cable
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
Manufacturer:
AddOn
Product ID:
182864
Item:
QDD-4QSFP28-400-CU2-5M-AO
Our Part #
26121609
Condition
New
$535.12EA
$880.00
$880.00
Availability
Only 39 Left In Stock
Product description
AddOn Twinaxial Network Cable - 8.20 ft Twinaxial Network Cable for Network Device, Transceiver, Server, Router, Switch - First End: 1 x QSFP-DD Network - Second End: 4 x QSFP28 Network - 200 Gbit/s - Shielding - VW-1 - 28 AWG - 1 - TAA Compliant
8.20 ft Twinaxial Network Cable for Network Device, Transceiver, Server, Router, Switch - First End: 1 x QSFP-DD Network - Second End: 4 x QSFP28 Network - 200 Gbit/s - Shielding - VW-1 - 28 AWG - 1 - TAA Compliant
Specifications
Connector on First End Details
1 x QSFP-DD Network
Connector on Second End Details
4 x QSFP28 Network
Connector Type on First End
QSFP-DD Network
Connector Type on Second End
QSFP28 Network
Jacket Material
Polyvinyl Chloride (PVC)
American Wire Gauge
28 AWG
Cable length
8.20 ft
Cable type
Twinaxial
Connector on First End
QSFP-DD Network
Connector on First End
1 x QSFP-DD Network
Connector on Second End
4 x QSFP28 Network
Connector on Second End
QSFP28 - Network
Country of origin
United States/United Kingdom
Data transfer rate
200 Gbit/s
Device Supported
Switch
Device Supported
Transceiver
Device Supported
Server
Device Supported
Router
Device Supported
Network Device
Environmental Certification
RoHS-6
Environmental Certification
RoHS
Features
Lead-free
Features
Pull Tab Latch
Features
Passive
Features
EMI/EMC Shield
Features
Flexible
Jacket Type
VW-1
Limited Warranty
Lifetime
Manufacturer
AddOn
Manufacturer Part Number
QDD-4QSFP28-400-CU2-5M-AO
Manufacturer Website Address
http://www.addoncomputer.com
Marketing Information
This is a Cisco® QDD-4QSFP28-400-CU2-5M compatible TAA compliant 200GBase-CU QSFP-DD 200G to 4xQSFP28 50G NRZ direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed uniquely serialized and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Packaged Quantity
1
Product Name
Twinaxial Network Cable
Product Type
Network Cable
Shielding
Yes
