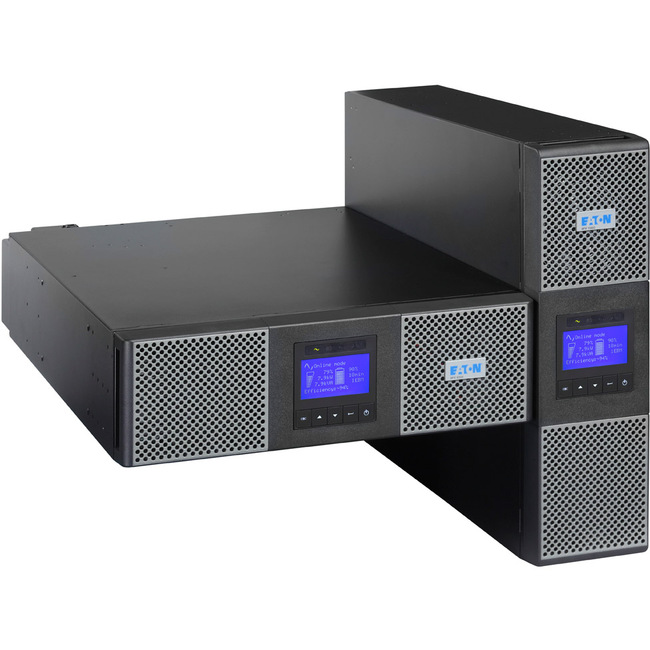

Eaton 9PX UPS 5000VA 4500 Watt 208V Network Card Included 6U Rack/Tower UPS
Eaton 9PX UPS 5000VA 4500 Watt 208V Network Card Included 6U Rack/Tower UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC, 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 6 x NEMA 5-20R
| $6,966.64 | Retail $9,060.00 |
- Enables you to customize UPS settings, view load and power consumption information through the graphical interactive LCD interface
- Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
- Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM technology
- Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional maintenance bypass
- Helps save money and protect the environment through energy efficient operation (ENERGY STAR® qualified UPS)
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
183092
Item:
9PX5KP1
UPC Code:
743172040541
Our Part #
2H7002
Condition
New
$6,966.64EA
$9,060.00
$9,060.00
Availability
Only 2 Left In Stock
Product description
Eaton 9PX UPS 5000VA 4500 Watt 208V Network Card Included 6U Rack/Tower UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC, 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 6 x NEMA 5-20R
6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC, 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x NEMA L6-30R, 1 x NEMA L14-30R, 6 x NEMA 5-20R
Specifications
Bypass Switch
Internal
Output Frequency
60 Hz
Receptacle Detail
1 x NEMA L14-30R
Receptacle Detail
1 x NEMA L6-30R
Receptacle Detail
6 x NEMA 5-20R
UPC Alternates
743172040541
Backup/Run Time (Full Load)
3 Minute
Backup/Run Time (Half Load)
11 Minute
Battery Characteristics
Maintenance-free/Sealed
Battery Chemistry
Lead Acid
Brand Name
Eaton
Country of origin
China
Depth
28"
Emergency Power OFF
Yes
Environmental Certification
RoHS
Form factor
Rack/Tower
Height
10.2"
Input frequency
70 Hz
Input voltage
220 V AC
Input voltage
110 V AC
Limited Warranty
2 Year
Load Capacity
5000 VA
Manufacturer
Eaton Corporation
Manufacturer Part Number
9PX5KP1
Manufacturer Website Address
http://www.eaton.com
Marketing Information
5kVA/4.5kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage valuable IT equipment or destroy data. The 9PX5KP1 is superlative power management for education commercial financial or healthcare networking components including Cisco switches and servers. Expandable Internal Battery Backup Keeps You Operational Through Power Outages The field-replaceable hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT sold separately) for hours of extended runtime. Included Distribution Module Helps Accommodate a Range of Connected Equipment The 9PXPPDM1 PowerPass Distribution Module allows a step-down voltage from 208V to 120V to allow the connection of a variety of IT components. It also features a maintenance bypass which lets you service or replace the 9PX5KP1 without powering down any connected equipment. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components One L6-30R one L14-30R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX5KP1 also supports hardwired output.
Marketing Information
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Network Management
SNMP Manageable
Output voltage
120 V AC
Output voltage
200 V AC
Output voltage
230 V AC
Output voltage
240 V AC
Output voltage
208 V AC
Package Contents
- 9PX5K 5kVA UPS
- 9PXPPDM1 PowerPass Distribution Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
Plug/Connector Type
NEMA L6-30P
Product Name
9PX5K 5kVA UPS
Product Series
9PX
Product Type
Double Conversion Online UPS
Product Type
Dual Conversion Online UPS
Rack Height
6U
Receptacle Type
NEMA L6-30R
Receptacle Type
NEMA 5-20R
Receptacle Type
NEMA L14-30R
Software Included
Eaton Intelligent Power Software
Transfer Time
0 ns
Weight (Approximate)
202.83 lb
Width
17"
