TRENDnet 1-Port Fast Ethernet Industrial Modbus Gateway, 1 x Serial DB-9 Port, 2 x Fast Ethernet Ports, Up to 100m (328 ft), IP30 Rated Housing, Extreme Temperature Protection, Black, TI-M12
TRENDnet 1-Port Fast Ethernet Industrial Modbus Gateway, 1 x Serial DB-9 Port, 2 x Fast Ethernet Ports, Up to 100m (328 ft), IP30 Rated Housing, Extreme Temperature Protection, Black, TI-M12 - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable, Wall Mountable
| $231.40 |
- 1 x serial port, 2 x Fast Ethernet ports
- Connect a RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
Manufacturer:
TRENDnet
Product ID:
183215
Item:
TI-M12
UPC Code:
710931161656
Our Part #
04XG82
Condition
New
$231.40EA
Availability
Only 3 Left In Stock
You may be also interested
Product description
TRENDnet 1-Port Fast Ethernet Industrial Modbus Gateway, 1 x Serial DB-9 Port, 2 x Fast Ethernet Ports, Up to 100m (328 ft), IP30 Rated Housing, Extreme Temperature Protection, Black, TI-M12 - Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable, Wall Mountable
Twisted Pair - 2 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable, Wall Mountable
Specifications
Network (RJ-45)
Yes
Number of Serial Ports
1
UPC Alternates
710931161656
Country of origin
Taiwan
Depth
3.1"
Ethernet Technology
Fast Ethernet
Form factor
DIN Rail Mountable
Form factor
Wall Mountable
Height
1.2"
Input voltage
12 V DC
Input voltage
56 V DC
Input Voltage Range
12V DC to 56V DC
Limited Warranty
Lifetime
Manufacturer
TRENDnet
Manufacturer Part Number
TI-M12
Manufacturer Part Number
TIM12
Manufacturer Website Address
http://www.trendnet.com
Marketing Information
- 1 x serial port 2 x Fast Ethernet ports
- Connect a RS-232/RS-422/RS-485 serial device such as a modem to a network
- Supports DHCP automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- Lifetime Warranty

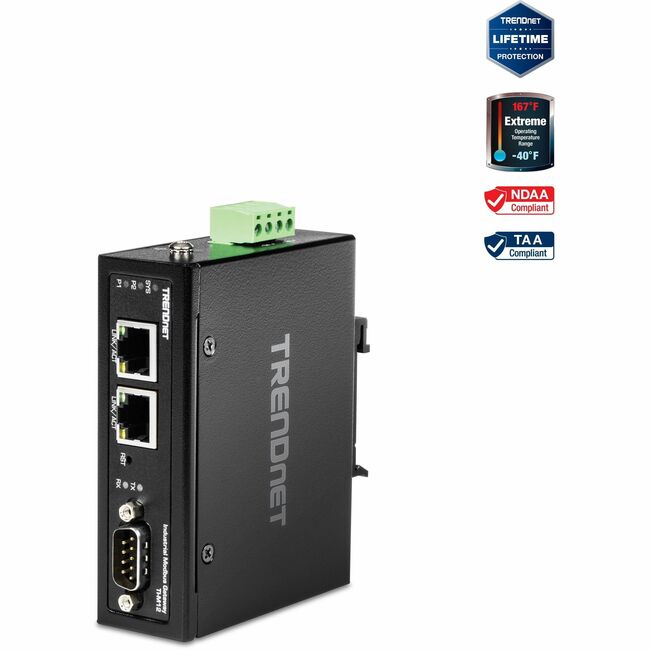

TRENDnet's Industrial Modbus Gateway model TI-M12 provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.
Network
Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Easily connect RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing vibration and shock resistance ESD/EMI/surge protection and a wide operation temperature range -40° - 75° C (-40° - 167° F).
FEATURES | Network
This modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling
Serial Connector
The modbus RTU to TCP gateway easily allows users to connect RS-232/ RS-422/RS-485 serial devices to the network
Industrial Design
This modbus gateway is designed with a rugged IP30 rated housing resistance to a high degree of vibration and shock protection against ESD/EMI/surges and a wide operation temperature range -40° - 75° C (-40° - 167° F)
Marketing Information
- 1 x serial port 2 x Fast Ethernet ports
- Connect a RS-232/RS-422/RS-485 serial device such as a modem to a network
- Supports DHCP automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- Lifetime Warranty
TRENDnet's Industrial Modbus Gateway model TI-M12 provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.
Network
Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Easily connect RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing vibration and shock resistance ESD/EMI/surge protection and a wide operation temperature range -40° - 75° C (-40° - 167° F).
FEATURES | Network
This modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling
Serial Connector
The modbus RTU to TCP gateway easily allows users to connect RS-232/ RS-422/RS-485 serial devices to the network
Industrial Design
This modbus gateway is designed with a rugged IP30 rated housing resistance to a high degree of vibration and shock protection against ESD/EMI/surges and a wide operation temperature range -40° - 75° C (-40° - 167° F)
Marketing Information
- 1 x serial port 2 x Fast Ethernet ports
- Connect a RS-232/RS-422/RS-485 serial device such as a modem to a network
- Supports DHCP automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
Network
Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Easily connect RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing vibration and shock resistance ESD/EMI/surge protection and a wide operation temperature range -40° - 75° C (-40° - 167° F).
FEATURES | Network
This modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling
Serial Connector
The modbus RTU to TCP gateway easily allows users to connect RS-232/ RS-422/RS-485 serial devices to the network
Industrial Design
This modbus gateway is designed with a rugged IP30 rated housing resistance to a high degree of vibration and shock protection against ESD/EMI/surges and a wide operation temperature range -40° - 75° C (-40° - 167° F)
Media Type Supported
Twisted Pair
Network Standard
10/100Base-TX
Number of Network (RJ-45) Ports
2
Package Contents
- Industrial Modbus Gateway
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
Plug/Connector Type
Terminal Block
Power consumption
3.84 W
Product Model
TI-M12
Product Name
Industrial Modbus Gateway
Product Type
Device Server
Weight (Approximate)
5.43 oz
Width
4.1"
