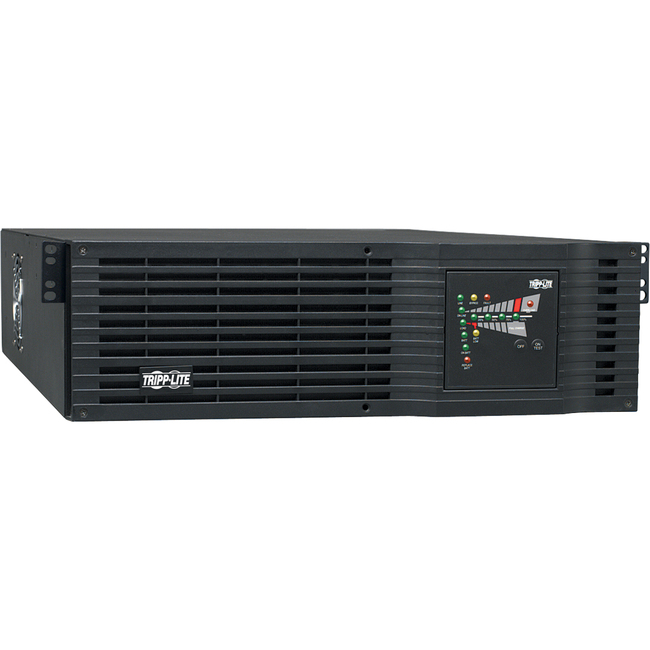

Tripp Lite UPS Smart Online 3000VA 2400W Rackmount 208V / 240V DB9 Preinstalled WEBCARDLX 3URM
Tripp Lite UPS Smart Online 3000VA 2400W Rackmount 208V / 240V DB9 Preinstalled WEBCARDLX 3URM - 3000 VA/2400 W - 5 Minute Stand-by Time - 3U Tower/Rack Mountable - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R - Over Voltage, Under Voltage, Brownout, EMI / RFI
| $0.06 | Retail $3,299.40 |
- 3000VA / 3kVA / 2400 watt on-line double-conversion 3U rack/tower UPS
- 110/120V +/-2% output at 50/60Hz, high 98% efficiency economy mode option
- Expandable runtime, Hot-swap batteries, 26 in. / 66cm installed depth
- USB, RS232, EPO ports and PRE-INSTALLED WEBCARDLX
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
183268
Item:
SU3000RTXL3UN
UPC Code:
037332181466
Our Part #
TL6673
Condition
New
$0.06EA
$3,299.40
$3,299.40
Availability
Only 9999 Left In Stock
Product description
Tripp Lite UPS Smart Online 3000VA 2400W Rackmount 208V / 240V DB9 Preinstalled WEBCARDLX 3URM - 3000 VA/2400 W - 5 Minute Stand-by Time - 3U Tower/Rack Mountable - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R - Over Voltage, Under Voltage, Brownout, EMI / RFI
3000 VA/2400 W - 5 Minute Stand-by Time - 3U Tower/Rack Mountable - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R - Over Voltage, Under Voltage, Brownout, EMI / RFI
Specifications
Bypass Switch
Automatic
Load Capacity (VA)
3000 VA
Load Capacity (W)
2400 W
Receptacle Detail
1 x NEMA L5-30R
Receptacle Detail
4 x NEMA 5-15R
Receptacle Detail
4 x NEMA 5-15/20R
UPC Alternates
037332181466 721886347149
Waveform Type
Pure Sine Wave
Waveform Type
Sine Wave
Alarm
UPS StartUp
Alarm
Power Failure
Alarm
Low Battery
Alarm
UPS Fault
Alarm
Remote Shutdown
Alarm
Overload
Backup/Run Time (Full Load)
5 Minute
Backup/Run Time (Half Load)
14 Minute
Brand Name
Tripp Lite
Certifications & Standards
- UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category A (EMI)
Circuit Breaker
Yes
Cord Length
10 ft
Country of origin
China
Dataline Protection
RJ-45
Dataline Protection
RJ-11
Depth
26"
Environmental Certification
RoHS
Form factor
Rack/Tower
Height
5.2"
Input current
24 A
Input voltage
120 V AC
Limited Warranty
2 Year
Load Capacity
3000 VA/2400 W
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SU3000RTXL3UN
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The SU3000RTXL3UN SmartOnline® 120V 3kVA 2.4kW On-Line Double-Conversion UPS provides the highest level of battery backup and AC power protection for critical server network and telecom equipment. It converts AC input to DC power and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes and zero transfer time to battery.
Operating with a high 94% efficiency in optional economy mode the SU3000RTXL2U cuts BTU heat output power consumption and energy costs. Featuring four NEMA 5-15/20R and four 5-15R outlets in two switchable breakered load banks as well as one non-breakered L5-30R outlet the SU3000RTXL3UN has an internal battery that provides 14 minutes of support at half load and 5 minutes at full load. Adding optional external battery packs such as Tripp Lite's BP72V15-2U (sold separately) provides extended runtime.
The pre-installed Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
Operating with a high 94% efficiency in optional economy mode the SU3000RTXL2U cuts BTU heat output power consumption and energy costs. Featuring four NEMA 5-15/20R and four 5-15R outlets in two switchable breakered load banks as well as one non-breakered L5-30R outlet the SU3000RTXL3UN has an internal battery that provides 14 minutes of support at half load and 5 minutes at full load. Adding optional external battery packs such as Tripp Lite's BP72V15-2U (sold separately) provides extended runtime.
The pre-installed Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
Maximum Operating Temperature
104°F (40°C)
Network Management
SNMP Manageable
Package Contents
- SU3000RTXL3UN US with Pre-installed WEBCARDLX
- Poweralert Software and Cabling
- Mounting Hardware For 4 Post Rack Enclosures
- Instruction Manual
Plug/Connector Type
NEMA L5-30P
Product Line
SmartOnline
Product Name
SU3000RTXL3UN US with Pre-installed WEBCARDLX
Product Type
Dual Conversion Online UPS
Product Type
Double Conversion Online UPS
Protection Type
Over Voltage
Protection Type
Under Voltage
Protection Type
Brownout
Protection Type
EMI / RFI
Rack Height
3U
Receptacle Type
NEMA L5-30R
Receptacle Type
NEMA 5-15R
Receptacle Type
NEMA 5-15/20R
Software Included
Poweralert Software
Status Indicators
- 14 LEDs indicate line power online mode economy/bypass mode on-battery overload battery low replace battery and fault status information
- 4-LED meter displays load and battery charge levels
- LED panel rotates for viewing in rack/tower formats
Surge energy rating
510 J
Thermal Dissipation
326.10 W
Total Number of Expansion Slots
1
Typical Battery Recharge Time
6 Hour
Weight (Approximate)
73.85 lb
Width
17.8"
