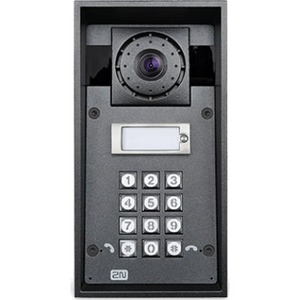

2N IP Force Video Door Phone Sub Station
2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° VerticalFull-duplexAluminum - CCTV Camera, Video Management System (VMS)
| $1,771.22 |
- Built for extreme conditions
- Professional night vision
- Clear sound in noisy environments
- Durable access control solution
- Wide-angle HD camera
- Easy integration into CCTV and VMS
By:
2N
Manufacturer:
Axis Communications
Product ID:
57329
Item:
01339-001
Our Part #
2MG847
Condition
New
$1,771.22EA
Availability
Currently out of stock
You may be also interested
Product description
2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° VerticalFull-duplexAluminum - CCTV Camera, Video Management System (VMS)
CMOS - 135° Horizontal - 109° VerticalFull-duplexAluminum - CCTV Camera, Video Management System (VMS)
Specifications
Communication Mode
Full-duplex
Product Material
Aluminum
Vertical Viewing Angle
109°
Additional Information
- Signalling Protocol: SIP (UDP TCP TLS)
- Button:
- Button design: Transparent white backlit buttons with easily replaceable label
- Count of buttons: 1
- Numerical keypad: Yes
- Audio:
- Microphone: 2 integrated microphones
- Amplifier: 10 W (class D)
- Speaker: 10 W
- Volume control: Adjustable with automatic adaptive mode
- Audio Stream:
- Protocols RTP/RTSP
- Codecs G.711 G.722 G.729 L 16/16kHz
- Camera HD:
- JPEG resolution 1280 (H) x 960 (V)
- Video resolution 640 (H) � 480 (V)
- Frame rate Up to 30 snapshots/s
- Sensor sensitivity: 5.6 V/lux-sec (550 nm) / 1.9 V/lux-sec (550 nm)
- Infrared light: Yes
- Video stream:
- Protocols: RTP/RTSP/HTTP
- Codecs: H.263 H.263+ H.264 MPEG-4 M-JPEG
- IP camera function: Yes ONVIF v2.4 profile S compatible
- Interface:
- PoE: PoE 802.3af (Class 0 - 1295 W)
- LAN: 10/100BASE-TX with Auto-MDIX RJ-45
- Recommended cabling: Cat-5e or higher
- Passive switch: NO/NC contacts max. 30 V/1A AC/DC
- Active switch output: 9 up to 13 V DC depending on power supply max. 700 mA
- Mechanical Properties:
- Operating temperature -40°F to 131 °F
- Storage temperature -40 °F to 158 °F
- humidity: 10 % - 95 % (non-condensing)
- Covering level IP69K and IK10
Application/Usage
CCTV Camera
Application/Usage
Video Management System (VMS)
Brand Name
2N
Country of origin
Czech Republic
Depth
3.3"
Durability
Water Resistant
Height
8.5"
Horizontal Viewing Angle
135°
Image Sensor Type
CMOS
Input voltage
12 V DC
Manufacturer
Axis Communications
Manufacturer Part Number
01339-001
Manufacturer Website Address
http://www.axis.com
Marketing Information
TOUGHEST IP INTERCOM IN THE WORLD
2N® IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It provides for visitor communication monitoring and access control. Take advantage of its superior features for maximum site security.
2N® IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It provides for visitor communication monitoring and access control. Take advantage of its superior features for maximum site security.
Product color
Black
Product Line
IP Force
Product Name
IP Force Video Door Phone Sub Station
Product Type
Video Door Phone Sub Station
Weight (Approximate)
4.41 lb
Width
4.3"
