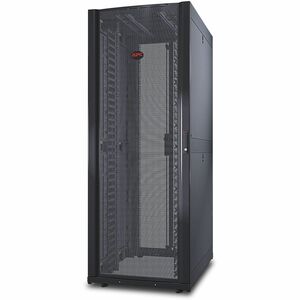

APC by Schneider Electric NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
APC by Schneider Electric NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides - For Networking, Airflow System - 42U Rack Height x 19" Rack Width - Floor Standing - Black - 2254.73 lb Dynamic/Rolling Weight Capacity - 3006.31 lb Static/Stationary Weight Capacity
| $3,215.74 | Retail $4,440.00 |
- Cable protection and pass-through: Smooth plastic fingers provide proper bend radius.
- High density cable management: The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.
- Improved cable access: Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.
- Integrated high density cable management: Decrease installation time while supporting the cabling needs of large networking switches.
- Optimized enclosure design for side-to-side airflow: Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networ
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
58407
Item:
AR3140
UPC Code:
731304275572
Our Part #
CE5981
Condition
New
$3,215.74EA
$4,440.00
$4,440.00
Availability
Only 3 Left In Stock
Product description
APC by Schneider Electric NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides - For Networking, Airflow System - 42U Rack Height x 19" Rack Width - Floor Standing - Black - 2254.73 lb Dynamic/Rolling Weight Capacity - 3006.31 lb Static/Stationary Weight Capacity
For Networking, Airflow System - 42U Rack Height x 19" Rack Width - Floor Standing - Black - 2254.73 lb Dynamic/Rolling Weight Capacity - 3006.31 lb Static/Stationary Weight Capacity
Specifications
Door Material Gauge
16
Dynamic/Rolling Weight Capacity
2254.73 lb
Rack Width
19"
Rail Material Gauge
14
Roof/Top Material Gauge
18
Static/Stationary Weight Capacity
3006.31 lb
Units Per Pallet
1
UPC Alternates
731304275572
Application/Usage
Airflow System
Application/Usage
Networking
Assembly Required
No
Brand Name
APC by Schneider Electric
Certifications & Standards
- UL 60950-1
- EIA-310-E
Compatibility
Side-to-Side Airflow
Depth
42.1"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Features
Adjustable Leveling Feet
Features
Adjustable Mounting Rails
Features
Casters
Features
Removable Side Panel
Features
Cable Management
Features
Perforated Door
Features
Lockable Door
Form factor
Floor Standing
Height
78.4"
Limited Warranty
5 Year
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AR3140
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
NetShelter SX Networking Enclosure expands APC's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Package Contents
- NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
- Baying Hardware
- Documentation CD
- Key(s)
- Keyed-alike Doors and Side Panels
- Leveling Feet
- Mounting Hardware
- Pre-installed Casters
- Side Panels
- User Manual
- Vertical Cable Managers
Product color
Black
Product Line
NetShelter SX
Product Name
NetShelter SX 42U 750mm Wide x 1070mm Deep Networking Enclosure with Sides
Product Type
Rack Cabinet
Rack Height
42U
Weight (Approximate)
343.81 lb
Width
29.5"
