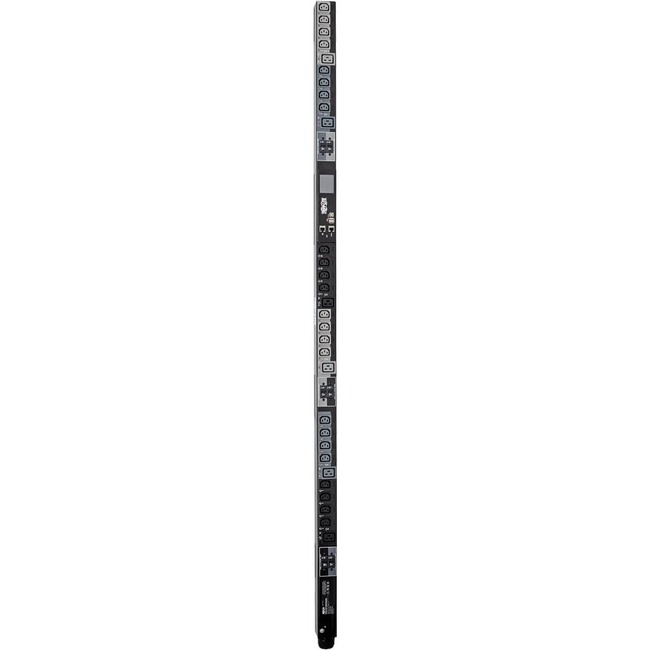

Tripp Lite PDU 3-Phase Switched 17.3kW 240V 24 C13 6 C19 30A Touchscreen 0U
Tripp Lite PDU 3-Phase Switched 17.3kW 240V 24 C13 6 C19 30A Touchscreen 0U - Switched - IEC 60309 30A RED 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
| $1,814.33 | Retail $2,811.74 |
- 17.3kW 240V 3-phase switched 1.8m 0U PDU
- 30 individually controllable outlets-24 C13, 6 C19
- Built-in LX Platform interface for remote access 24/7
- IEC 309 30A Red 415V PDU input with 1.8m AC power cord
- Touchscreen LCD with mobile access option via QR code
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
58429
Item:
PDU3XEVSR6G30B
UPC Code:
037332195449
Our Part #
5JU904
Condition
New
$1,814.33EA
$2,811.74
$2,811.74
Availability
Only 2 Left In Stock
Product description
Tripp Lite PDU 3-Phase Switched 17.3kW 240V 24 C13 6 C19 30A Touchscreen 0U - Switched - IEC 60309 30A RED 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Switched - IEC 60309 30A RED 3P+N+E - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Specifications
Mounting Orientation
Vertical
PDU Type
Switched
Phase
Three Phase
Power Rating (Watt)
17.30 kW
Receptacle Detail
24 x IEC 60320 C13
Receptacle Detail
6 x IEC 60320 C19
UPC Alternates
037332195449
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input current
24 A
Input voltage
415 V AC
Limited Warranty
2 Year
Management
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU3XEVSR6G30B
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The PDU3XEVSR6G30B 17.3kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. By reducing the frequency of on-site visits these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched 240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter (six-foot) cord with IEC 309 30A Red 415V plug connects the PDU to a compatible AC power source generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2c SNMPv3 Telnet SSH FTP DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase output current per load bank and per outlet with ±1% billing-grade accuracy environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
Mount Type
Rack-mountable
Output voltage
240 V AC
Package Contents
- PDU3XEVSR6G30B 30-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 30 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
Plug/Connector Type
IEC 60309 30A RED 3P+N+E
Product Name
PDU3XEVSR6G30B 30-Outlet PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
0U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
17.60 lb
Width
2.2"
