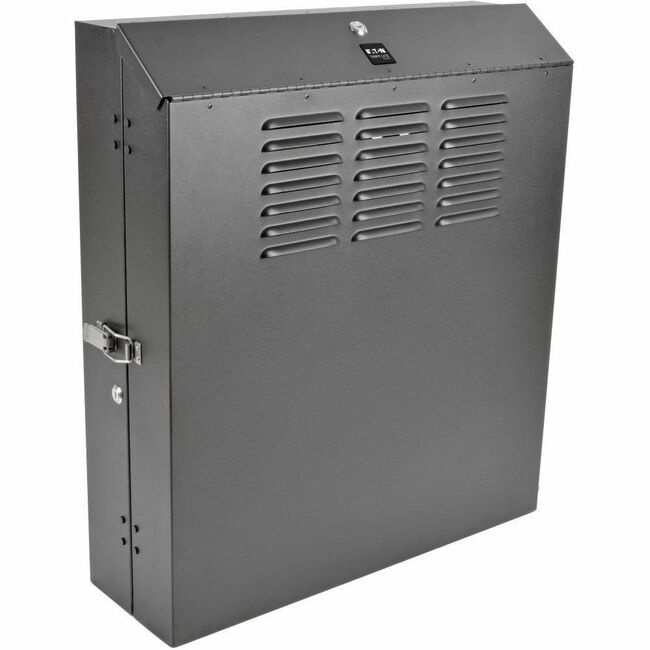

Tripp Lite 6U Wall Mount Low Profile Secure Rack Enclosure Cabinet Vertical
Tripp Lite 6U Wall Mount Low Profile Secure Rack Enclosure Cabinet Vertical - For LAN Switch, Patch Panel - 6U Rack Height20" Rack Depth - Wall Mountable - Black - Steel - 149.91 lb Maximum Weight Capacity - 149.91 lb Static/Stationary Weight Capacity
| $533.90 | Retail $827.42 |
- Maximum load capacity of 150 lb.
- Locking steel cabinet vented to keep equipment cool
- Secures 6U of 19 in. rack equipment up to 20 in. deep
- Includes additional 2U of space for patch panels
- Ships fully assembled for quick installation
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
58697
Item:
SRWF6U
UPC Code:
037332190635
Our Part #
4A0133
Condition
New
$533.90EA
$827.42
$827.42
Availability
Only 155 Left In Stock
Product description
Tripp Lite 6U Wall Mount Low Profile Secure Rack Enclosure Cabinet Vertical - For LAN Switch, Patch Panel - 6U Rack Height20" Rack Depth - Wall Mountable - Black - Steel - 149.91 lb Maximum Weight Capacity - 149.91 lb Static/Stationary Weight Capacity
For LAN Switch, Patch Panel - 6U Rack Height20" Rack Depth - Wall Mountable - Black - Steel - 149.91 lb Maximum Weight Capacity - 149.91 lb Static/Stationary Weight Capacity
Specifications
Product Material
Steel
Rack Depth
20"
UPC Alternates
037332190635
Application/Usage
Patch Panel
Application/Usage
LAN Switch
Assembly Required
No
Brand Name
Tripp Lite
Country of origin
China
Depth
11.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Height
28.8"
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SRWF6U
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The SRWF6U SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets retail locations classrooms back offices and other areas with limited floor space where you need equipment to be secure organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish the cabinet has a maximum load capacity of 150 pounds.
Because the low-profile cabinet mounts vertically it extends less than 12 inches from the wall while housing equipment up to 20 inches deep including network switches and patch panels. In addition to 6U of rack space in the primary mounting area it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage tampering or theft. The cabinet is vented which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF6U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Because the low-profile cabinet mounts vertically it extends less than 12 inches from the wall while housing equipment up to 20 inches deep including network switches and patch panels. In addition to 6U of rack space in the primary mounting area it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage tampering or theft. The cabinet is vented which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF6U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Maximum weight capacity
149.91 lb
Package Contents
- SmartRack SRWF6U Rack Cabinet
- 12 x M6 screws
- 12 x M6 cup washers
- 12 x 12-24 screws
- 2 x Keys
- Owner's manual
Product color
Black
Product Line
SmartRack
Product Name
SmartRack SRWF6U Rack Cabinet
Product Type
Rack Cabinet
Rack Height
6U
Weight (Approximate)
64 lb
Width
25.6"
