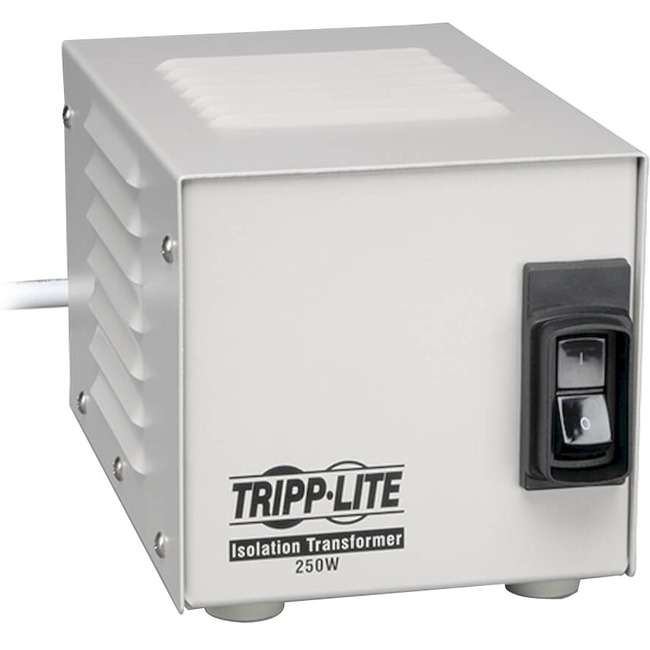

Tripp Lite 250W Isolation Transformer Hospital Medical with Surge 120V 2 Outlet HG TAA GSA

• Transformer Type: Medical grade low impedance transformer-based line isolation transformer
• Removes EMI/RFI noise utility switching transients load-generated harmonics and ground loops
• Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
• Suppression Joule Rating: 680 (510 input/170 output)
• Leakage Current: As low as 100 microamps
• Noise Suppression Rating: 35 to 65 DB
• Total Harmonic Distortion: Less than 1%
• Over Current Protection: 2A circuit breaker
• Cooling Method: Convection
• Efficiency: 96%
• Let-through Voltage (Ring Wave):

• L-N: 20 V
• L-G: 20 V
• N-G: 0.5 V

• Let-through Voltage (Combination Wave):

• L-N: 250 V
• L-G: 250 V
• N-G: 0.5 V

• cUL
• UL 2601-1
• UL (UL Series AGIS250YWN)

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise providing an isolated neutral-ground reference for sensitive equipment and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEE

• IS250HG
• IS250HG Isolation Transformer
• Instruction manual with warranty information
