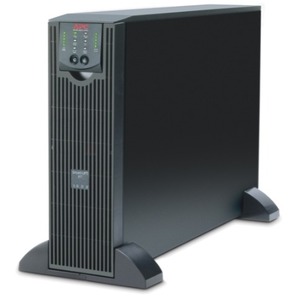

APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS
APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS - 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - 3 x NEMA 5-15R, 1 x NEMA L5-20R, 3 x NEMA 5-20R
| $2,073.53 | Retail $2,860.00 |
- Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- APC USB communications - Enables communications with SMX, SMT, SRT and SURTD Smart-UPS models using historical APC proprietary USB usages.
- Audible alarms - Provides notification of changing utility power and UPS power conditions
- Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure noti
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
58825
Item:
SMX2KR2UNCX145
UPC Code:
731304343271
Our Part #
7GZ675
Condition
New
$2,073.53EA
$2,860.00
$2,860.00
Availability
Only 7 Left In Stock
Product description
APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS - 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - 3 x NEMA 5-15R, 1 x NEMA L5-20R, 3 x NEMA 5-20R
2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - 3 x NEMA 5-15R, 1 x NEMA L5-20R, 3 x NEMA 5-20R
Specifications
Battery Energy
2484 kJ
Load Capacity (VA)
1920 VA
Load Capacity (W)
1800 W
Maximum Operating Elevation
9842.52 ft
Maximum Storage Elevation
49212.60 ft
Number of Battery & Surge Outlets
7
Output Frequency
60 Hz
Receptacle Detail
1 x NEMA L5-20R
Receptacle Detail
3 x NEMA 5-15R
Receptacle Detail
3 x NEMA 5-20R
Sound Emission (A-Weighted)
55 dB(A)
Storage Relative Humidity
0% - 95%
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
731304343271
Waveform Type
Sine Wave
Alarm
UPS Power Condition
Alarm
Changing Utility Power
Alarm
On Battery
Alarm
Configurable Delay
Alarm
Overload
Alarm
Low Battery
Application/Usage
Network Hub
Application/Usage
Server
Application/Usage
POS Terminal
Application/Usage
Critical System
Application/Usage
Router
Application/Usage
Storage Device
Application/Usage
Network Device
Application/Usage
IT Equipment
Application/Usage
Security System
Application/Usage
Communication System
Application/Usage
Switch
Application/Usage
Business
Backup/Run Time (Full Load)
10.90 Minute
Backup/Run Time (Half Load)
27.60 Minute
Battery capacity
2484 kJ
Battery Characteristics
Maintenance-free Sealed Leak-proof
Battery Chemistry
Lead Acid
Brand Name
APC by Schneider Electric
Country of origin
Philippines
Depth
26.3"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmental Certification
Battery Directive
Form factor
Rack-mountable
Height
3.3"
Hot Swappable
Yes
Input voltage
120 V AC
Input Voltage Range
70 V AC - 153 V AC
Limited Warranty
3 Year
Load Capacity
1920 VA/1800 W
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX2KR2UNCX145
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers point-of-sale routers switches hubs and other network devices.
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level standard and extended run) there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers security and communication systems through outages that could last hours.
Maximum Operating Temperature
104°F (40°C)
Network Management
USB
Number of Batteries
1
Package Contents
Plug/Connector Type
NEMA 5-20P
Product color
Black
Product Family
Smart-UPS X
Product Line
Smart-UPS
Product Name
Smart-UPS X 1920VA Rack/Tower UPS
Product Series
X
Product Type
Line-interactive UPS
Rack Height
2U
Receptacle Type
NEMA 5-20R
Receptacle Type
NEMA 5-15R
Receptacle Type
NEMA L5-20R
Software Included
Powerchute® Business Edition Software
Sound Emission
55 dB(A)
Status Indicators
LED Status Indicators:
- Unit Status
- Power Status
- On Line
- On Battery
- Replace Battery
- Overload
Surge energy rating
540 J
Thermal Dissipation
59.49 W
Transfer Time
4 ms
Typical Battery Recharge Time
3 Hour
Weight (Approximate)
84.77 lb
Width
17"
