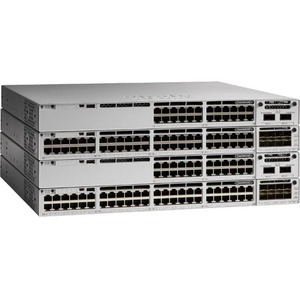

Cisco Catalyst 9300-48UN-E Switch
Cisco Catalyst 9300-48UN-E Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - 1100 W Power Consumption - 645 W PoE Budget - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
| $11,440.87 | Retail $15,377.51 |
- Features 48 networking ports to establish large network
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Handles extremely large amounts of data with high data throughput and gives an unhindered performance
- Supports layer 3 switching for enhanced performance and usability
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
By:
Cisco
Manufacturer:
Cisco Systems, Inc
Product ID:
59154
Item:
C9300-48UN-E
UPC Code:
889728035767
Our Part #
5JU419
Condition
New
$11,440.87EA
$15,377.51
$15,377.51
Availability
Only 100 Left In Stock
Product description
Cisco Catalyst 9300-48UN-E Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - 1100 W Power Consumption - 645 W PoE Budget - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
48 Ports - Manageable - 3 Layer Supported - Modular - 1100 W Power Consumption - 645 W PoE Budget - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
Specifications
Compatible Rack Unit
1U
Number of Power Supplies Installed
1
Number of Power Supplies Supported
2
PoE Budget
645 W
Total Number of Network Ports
48
UPC Alternates
889728035767
Brand Name
Cisco
Depth
19.1"
Environmental Certification
WEEE
Environmental Certification
RoHS-5
Ethernet Technology
5 Gigabit Ethernet
Expansion Slot Type
Uplink Module
Form factor
Rack-mountable
Frequency
60 Hz
Frequency
50 Hz
Height
1.7"
Input voltage
230 V AC
Input voltage
115 V AC
Layer Supported
3
Limited Warranty
Lifetime
Manageable
Yes
Manufacturer
Cisco Systems Inc
Manufacturer Part Number
C9300-48UN-E
Manufacturer Website Address
http://www.cisco.com
Marketing Information
Built for security IoT mobility and cloud
The Cisco® Catalyst® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security IoT mobility and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access) Cisco's lead enterprise architecture. At up to 480 Gbps they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future with an x86 CPU architecture and more memory enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO) for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower® which delivers high-density Power over Ethernet Plus (PoE+) 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
The Foundation of Software-Defined access
Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate secure and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.
The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:
- Simplified device deployment
- Unified management of wired and wireless networks
- Network virtualization and segmentation
- Group-based policies
- Context-based analytics
Media Type Supported
Twisted Pair
Network Technology
5GBase-T
Package Contents
- Catalyst 9300-48UN-E Switch
- 1 x Power Supply
- 3 x Field-Replaceable Fans
Plug/Connector Type
IEC 60320 C16
Port/Expansion Slot Details
48 x 5 Gigabit Ethernet UPoE
Port/Expansion Slot Details
1 x Uplink
Power consumption
1100 W
Power source
Power Supply
Product Family
Catalyst 9300
Product Line
Catalyst
Product Model
C9300-48UN
Product Name
Catalyst 9300-48UN-E Switch
Product Series
9300
Product Type
Ethernet Switch
Weight (Approximate)
20.05 lb
Width
17.5"
