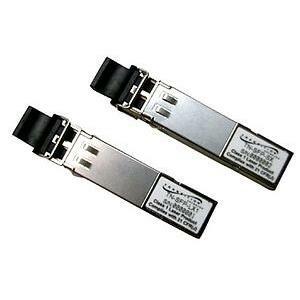

Transition Networks 1000BASE-LX 1310nm(10 Km) SFP Module
Transition Networks 1000BASE-LX 1310nm(10 Km) SFP Module - 1 x 1000Base-LX
| $141.98 | Retail $181.50 |
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
59290
Item:
TN-SFP-LX1
UPC Code:
648177013838
Our Part #
E81564
Condition
New
$141.98EA
$181.50
$181.50
Availability
Currently out of stock
Product description
Transition Networks 1000BASE-LX 1310nm(10 Km) SFP Module - 1 x 1000Base-LX
1 x 1000Base-LX
Specifications
Fiber Mode Supported
Single-mode
Interfaces/Ports Details
1 x LC 1000Base-LX
Maximum Distance Supported
32808.40 ft
UPC Alternates
648177013838 999568352112
Additional Information
- Fiber Channel Switch Infrastructure
- Optical Wavelength: 1310nm
- Metro Edge Switching
- Digital Diagnostic Function
- Min TX PWR: -9.5 dBm
- Max TX PWR: -3 dBm
- RX Sensitivity: -21 dBm
- Max In PWR: -3 dBm
- Link Budget: 11.50 dB
Application/Usage
Data Networking
Brand Name
Transition Networks
Compatibility
- The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Connector Type
LC
Country of origin
Taiwan
Depth
2.2"
Form factor
Hot-pluggable
Height
0.3"
Input voltage
3.3 V DC
Limited Warranty
Lifetime
Manufacturer
Transition Networks Inc
Manufacturer Part Number
TN-SFP-LX1
Manufacturer Website Address
http://www.transition.com
Marketing Information
The TN-SFP-LX1 Small Form Factor Pluggables (SFP) transceiver is designed for bi-directional serial optical data communications such as Gigabit Ethernet or Fiber Channel and speeds up to 1.25Gbps.
The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The module also offer comprehensive digital diagnostic capability (DMI).
Maximum Data Transfer Rate
1.25
Media Type Supported
Optical Fiber
Product Name
1000BASE-LX 1310nm(10 Km) SFP Module
Product Type
SFP (mini-GBIC)
Total Number of Ports
1
Width
0.5"
