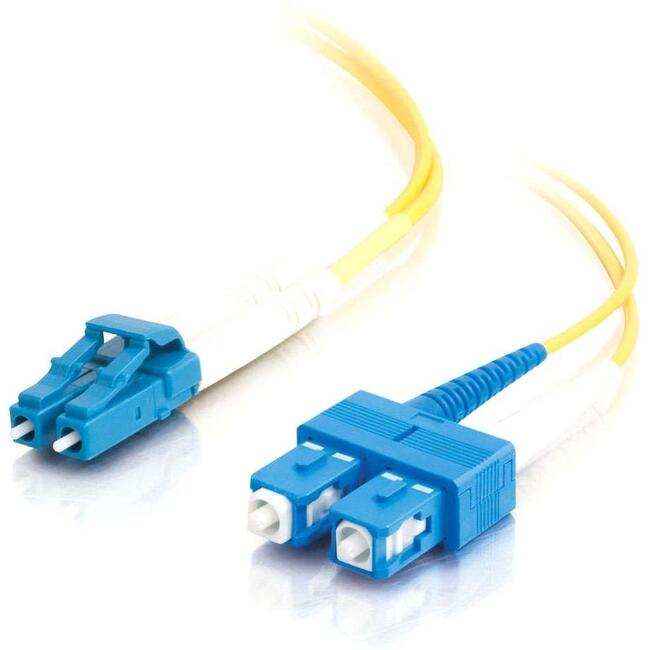

C2G 5m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 16ft
C2G 5m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 16ft - 5m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 16ft
| $20.65 | Retail $42.99 |
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Flexible enough to offer a variety of options to suit a specific need
Manufacturer:
C2G
Product ID:
60849
Item:
28950
UPC Code:
007571202895
Our Part #
26121607
Condition
New
$20.65EA
$42.99
$42.99
Availability
Only 14 Left In Stock
Product description
C2G 5m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 16ft - 5m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 16ft
5m LC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Yellow - 16ft
Specifications
Connector on First End Details
2 x LC Network - Male
Connector on Second End Details
2 x SC Network - Male
Connector Type on First End
LC Network - Male
Connector Type on Second End
SC Network - Male
UPC Alternates
007571202895 069060239386 757120289500
Additional Information
- Buffer material: PVC
- Buffer OD: 900 µm
- Jacket OD: 3.0 mm
- Attenuation @1310 nm: 1.0 dB/km
- Attenuation @1550 nm: 0.75 dB/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles
Cable Characteristic
Patch Cable
Cable length
16.40 ft
Cable type
Fiber Optic
Color
Yellow
Connector on First End
LC Male Network
Connector on First End
2 x LC Male Network
Connector on Second End
SC Male Network
Connector on Second End
2 x SC Male Network
Core/Cladding Diameter
9/125 µm
Country of origin
Hong Kong
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Flex Resistant
Features
Pull Resistant Connector
Features
Strain Resistant
Features
Molded
Features
Crush Resistant
Features
Impact Resistant
Fiber Optic Mode
Single-mode
Jacket Type
Plenum
Limited Warranty
Lifetime
Manufacturer
C2G
Manufacturer Part Number
28950
Manufacturer Website Address
http://www.cablestogo.com
Marketing Information
Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With LC to SC termination this high quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls strains and impacts from cabling installs.
Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 Single-mode fiber immune to electrical interference.
Product color
Yellow
Product Name
Fiber Jumper
Product Type
Network Cable
