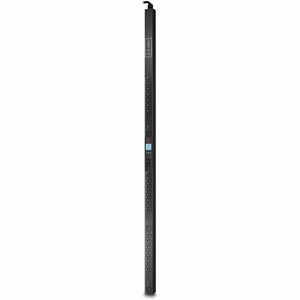

APC by Schneider Electric Switched Rack AP8000 24-Outlets 5.7kW PDU
APC by Schneider Electric Switched Rack AP8000 24-Outlets 5.7kW PDU - Switched - NEMA L21-20P - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 230 V AC - 5700 W - Rack-mountable
| $2,311.52 | Retail $3,070.00 |
- Metering-by-Outlet capability - Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
60920
Item:
AP8661
UPC Code:
014475593837
Our Part #
6VR602
Condition
New
$2,311.52EA
$3,070.00
$3,070.00
Availability
Currently out of stock
Product description
APC by Schneider Electric Switched Rack AP8000 24-Outlets 5.7kW PDU - Switched - NEMA L21-20P - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 230 V AC - 5700 W - Rack-mountable
Switched - NEMA L21-20P - 3 x IEC 60320 C19, 21 x IEC 60320 C13 - 230 V AC - 5700 W - Rack-mountable
Specifications
Number of Cord/Cable
1
PDU Type
Switched
Power Rating (Watt)
5700 W
Receptacle Detail
21 x IEC 60320 C13
Receptacle Detail
3 x IEC 60320 C19
UPC Alternates
014475593837 731304276999
Brand Name
APC by Schneider Electric
Country of origin
Philippines
Depth
2"
Environmental Certification
REACH
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
72"
Input voltage
230 V AC
Limited Warranty
2 Year
Management
Protocols:
- Web
- SNMP
- Telnet
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8661
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
APC Switched Rack Power Distribution Units (PDUs) enable advanced user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access configure and control Switched Rack PDUs through secure Web SNMP Command Line Interface or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central Operations Capacity and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring a temperature/humidity sensor port and locking IEC receptacles.
Mount Type
Rack-mountable
Output voltage
208 V AC
Package Contents
Plug/Connector Type
NEMA L21-20P
Product Family
Switched Rack AP8000
Product Line
Switched Rack
Product Name
Switched Rack AP8000 24-Outlets 5.7kW PDU
Product Series
AP8000
Product Type
PDU
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
15.70 lb
Width
2.2"
