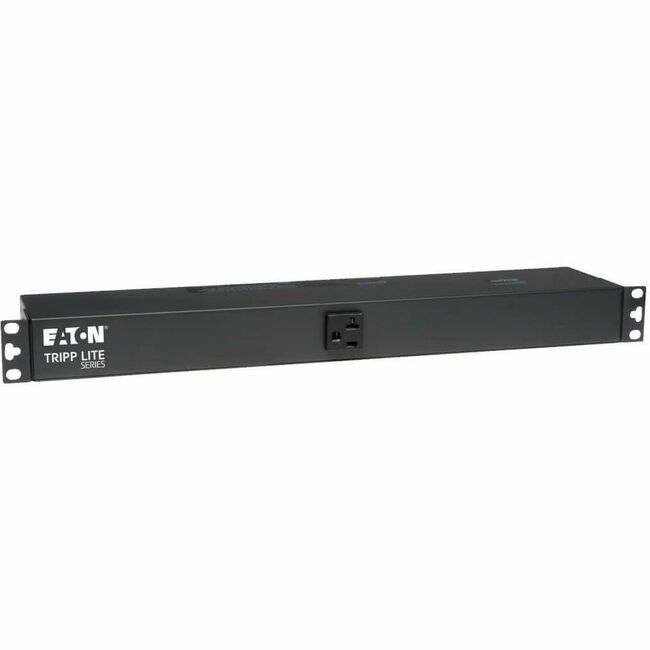

Tripp Lite PDU Basic 13 NEMA 5-15/20R Outlets L5-20P Input 6ft Cord 1URM
Tripp Lite PDU Basic 13 NEMA 5-15/20R Outlets L5-20P Input 6ft Cord 1URM - Basic - NEMA L5-20P - 13 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal/Vertical - Rack-mountable, Wall-mountable
| $161.65 | Retail $234.00 |
- Ideal no-frills PDU for telecom, security, audio/video and other network applications
- 13 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 6-ft. (1.83 m) cord with NEMA L5-20P single-phase input connects to AC power source
- Flexible installation options include 1U and 0U rack, under counter and on wall
- 5-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
61151
Item:
PDU1220T6
UPC Code:
037332255761
Our Part #
8JR834
Condition
New
$161.65EA
$234.00
$234.00
Availability
Only 316 Left In Stock
Product description
Tripp Lite PDU Basic 13 NEMA 5-15/20R Outlets L5-20P Input 6ft Cord 1URM - Basic - NEMA L5-20P - 13 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal/Vertical - Rack-mountable, Wall-mountable
Basic - NEMA L5-20P - 13 x NEMA 5-15/20R - 120 V AC - 1U - Horizontal/Vertical - Rack-mountable, Wall-mountable
Specifications
Mounting Orientation
Horizontal/Vertical
PDU Type
Basic
Phase
Single Phase
Power Rating (Watt)
2500 W
Receptacle Detail
13 x NEMA 5-15/20R
UPC Alternates
037332255761
Brand Name
Tripp Lite
Country of origin
China
Depth
4.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
20 A
Input voltage
120 V AC
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU1220T6
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for high-density IT environments the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Mount Type
Wall-mountable
Mount Type
Rack-mountable
Output voltage
100 V AC
Output voltage
127 V AC
Package Contents
- PDU1220T6 13-Outlets PDU
- Rack-mounting Hardware
- Owner's Manual
Plug/Connector Type
NEMA L5-20P
Product Name
PDU1220T6 13-Outlets PDU
Product Type
PDU
Protection Type
Circuit Protection
Protection Type
Overload Protection
Protection Type
Accidental Power Shutdown
Rack Height
1U
Receptacle Type
NEMA 5-15/20R
Weight (Approximate)
5.20 lb
Width
17.5"
