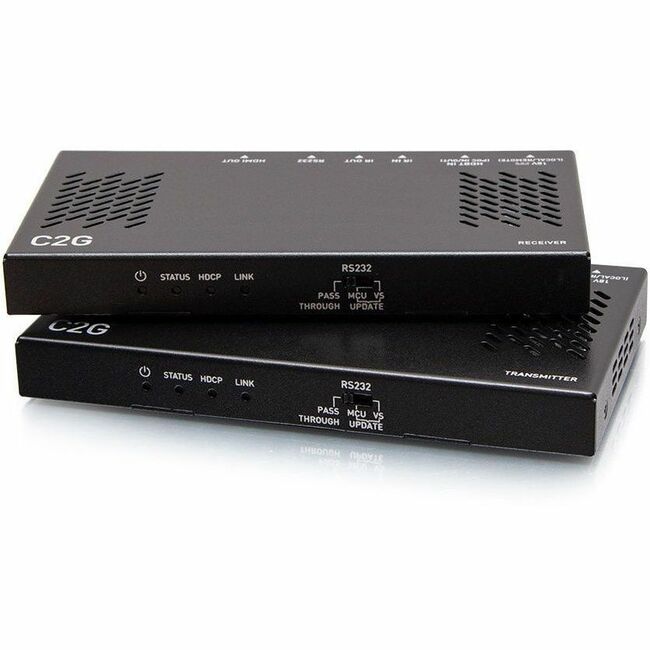

C2G Video Extender Transmitter/Receiver
C2G Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - Twisted Pair - Category 7
| $16,552.62 |
- Extend 4K at 30Hz (4:4:4) up to 328ft with Cat 6a cable
- Extend 4K at 30Hz (4:4:4) up to 230ft and 1080p at 60Hz up to 328ft with Cat 5e/6 cable
- Supports Visual Lossless Compression (VLC) solution through HDBaseT
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Supports EDID from the HDMI out
- Supports CEC pass-through, allowing central control to all HDMI compatible devices
- Supports bi-directional RS232 pass-through
- Supports bi-directional IR pass-through
- Supports bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
Manufacturer:
C2G
Product ID:
61538
Item:
C2G30026
UPC Code:
757120300267
Our Part #
9HN231
Condition
New
$16,552.62EA
Availability
Only 9999 Left In Stock
Product description
C2G Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - Twisted Pair - Category 7
1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - Twisted Pair - Category 7
Specifications
Network (RJ-45)
Yes
Transmitter Depth
2.92"
Transmitter Height
0.60"
Transmitter Weight (Approximate)
9.17 oz
Transmitter Width
5.37"
UPC Alternates
757120300267
Connectivity technology
Wired
Country of origin
China
Graphics Modes
4K UHD
Limited Warranty
3 Year
Manufacturer
C2G
Manufacturer Part Number
C2G30026
Manufacturer Website Address
http://www.cablestogo.com
Marketing Information
The HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz allows a 4K HDMI source to be extended up to 328ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms classrooms lecture halls and many other installation needs are far beyond the length limitations of standard HDMI cabling.
Extend 4K HDMI up to 230 feet and 1080p up to 328 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 328 feet using a Cat6a cable.
This HDMI HDBaseT receiver supports Visual Lossless Compression (VLC) which means the compressed data will appear identical to the uncompressed data. The receiver is also HDCP 2.2 compliant making sure that the connection from the source is secure. With bi-directional Power over Cable (PoC) support one power adapter at either transmitter or receiver side can power both units so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control bi-directional IR and device control through the RS232 port.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Maximum Operating Distance
328 ft
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- 1 x Transmitter
- 1 x Receiver
Product color
Black
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 7
