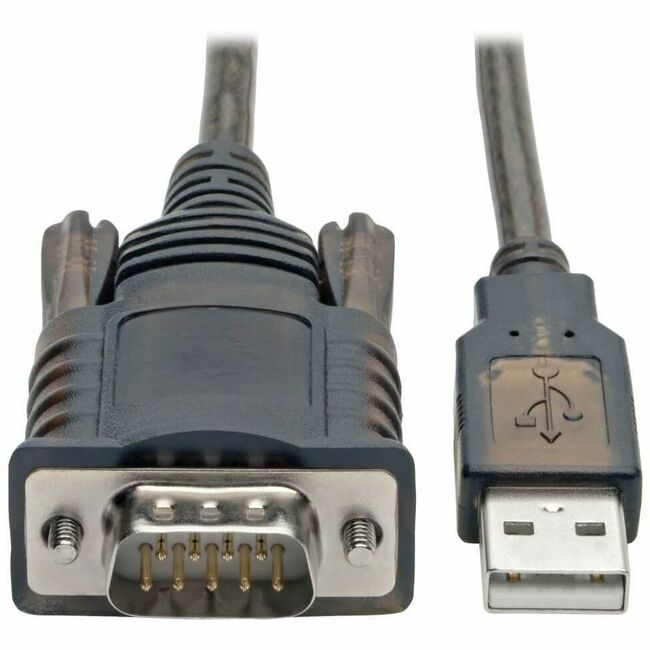

Tripp Lite RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M), FTDI, 5 ft.
Tripp Lite RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M), FTDI, 5 ft. - 5 ft Serial/USB Data Transfer Cable for Barcode Scanner, Printer - First End: 1 x Type A Male USB - Second End: 1 x DB-9 Male Serial - 480 Mbit/s - Shielding - Nickel Plated Connector - Gold Plated Contact - Black
| $20.96 | Retail $56.00 |
- Supports data transfer speeds up to 230 Kbps-double the speed of a built-in serial port
- Automatically reassigns COM values to each port to avoid additional configuration
- USB-powered, so no bulky or obtrusive external power supply is required
- Double shielding protects against EMI/RFI line noise that can distort or destroy data
- Compatible with Windows, Mac and Linux-works with most computers
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
61721
Item:
U209-005-COM
UPC Code:
037332210227
Our Part #
4AT607
Condition
New
$20.96EA
$56.00
$56.00
Availability
Only 286 Left In Stock
Product description
Tripp Lite RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M), FTDI, 5 ft. - 5 ft Serial/USB Data Transfer Cable for Barcode Scanner, Printer - First End: 1 x Type A Male USB - Second End: 1 x DB-9 Male Serial - 480 Mbit/s - Shielding - Nickel Plated Connector - Gold Plated Contact - Black
5 ft Serial/USB Data Transfer Cable for Barcode Scanner, Printer - First End: 1 x Type A Male USB - Second End: 1 x DB-9 Male Serial - 480 Mbit/s - Shielding - Nickel Plated Connector - Gold Plated Contact - Black
Specifications
Connector on First End Details
1 x USB 2.0 Type A - Male
Connector on Second End Details
1 x 9-pin DB-9 RS-232 Serial - Male
Connector Type on First End
USB 2.0 Type A - Male
Connector Type on Second End
DB-9 RS-232 Serial - Male
UPC Alternates
037332210227 993244983270
Brand Name
Tripp Lite
Cable length
5 ft
Cable type
Serial/USB
Color
Black
Connector on First End
Type A Male USB
Connector on First End
1 x Type A Male USB 2.0 USB
Connector on Second End
1 x 9-pin DB-9 Male RS-232 Serial
Connector on Second End
DB-9 Male Serial
Connector Plating
Nickel
Contact Plating
Gold
Country of origin
China
Data transfer rate
480 Mbit/s
Device Supported
Printer
Device Supported
Barcode Scanner
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmental Certification
REACH
Features
EMI/RF Protection
Limited Warranty
3 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
U209-005-COM
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Connects a Barcode Scanner or Other DTE Serial Device to Your Computer's USB-A Port
This five-foot serial RS232 to USB adapter cable turns your computer's USB port into an RS232 serial port and avoids the expense of upgrading your reliable serial devices. No external power source is needed. Just connect the cable to your computer and insert the included CD into your computer's CD drive in order to launch the driver and assign the cable a COM port. It supports USB 2.0 specifications and data transfer speeds up to 230 Kbps which is almost twice as fast as a built-in serial port. It is backward compatible with USB 1.1 devices.
COM Retention Feature for Convenient Reassigning of COM Values to Ports
The hot-swappable RS232-port-to-USB adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port so when the cable is disconnected or the system is rebooted no additional configuration is needed. The cable also supports remote wake-up and power management.
Double Shielding Protects Your Data from Destructive Line Noise
Foil and braid shielding helps fight against electromagnetic interference and radio frequency interference (EMI/RFI) that impedes your signal and can distort or destroy data. The auto-sensing feature solves DCE/DTE conflicts without the need for cross-wired serial cables or adapters.
3-Year Warranty
The U209-005-COM is backed by a 3-year warranty ensuring reliability and performance.
Package Contents
- RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M) FTDI 5 ft.
- Driver CD
- Owner's Manual
Product color
Black
Product Name
RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M) FTDI 5 ft.
Product Type
Data Transfer Cable
Shielding
Yes
Weight (Approximate)
0.15 lb
