Tripp Lite PDU 3-Phase Metered 208V 8.6kW L21-30P 36 C13; 9 C19 0URM TAA
Tripp Lite PDU 3-Phase Metered 208V 8.6kW L21-30P 36 C13; 9 C19 0URM TAA - Vertical Rackmount, Toolless-mount
| $809.82 | Retail $1,213.06 |

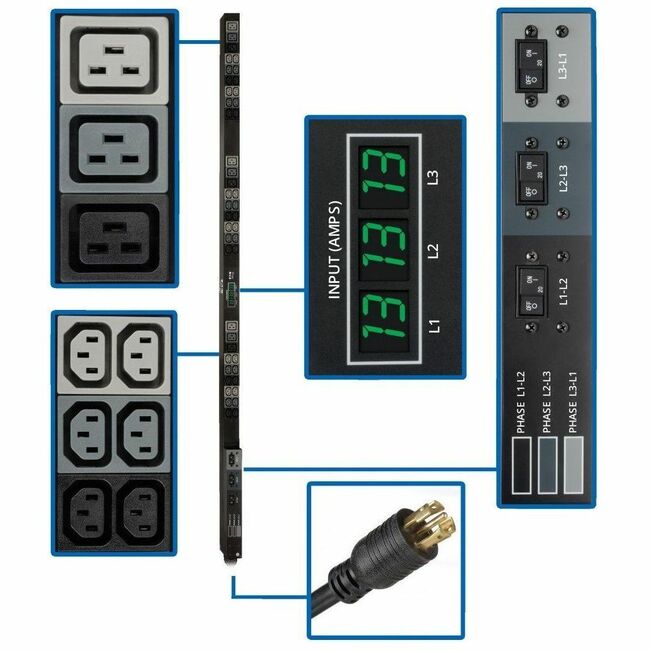

- Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports voltage and load per-phase via set of 3 digital current displays
- NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. / 1.8m line cord
- 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves
- Toolless button-mount installation, TAA Compliant
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
62297
Item:
PDU3MV6L2130A
UPC Code:
037332182746
Our Part #
ZQ0796
Condition
New
$809.82EA
$1,213.06
$1,213.06
Availability
Only 5 Left In Stock
Product description
Tripp Lite PDU 3-Phase Metered 208V 8.6kW L21-30P 36 C13; 9 C19 0URM TAA - Vertical Rackmount, Toolless-mount
Vertical Rackmount, Toolless-mount
Specifications
Mounting Orientation
Vertical
Power Rating (Watt)
8600 W
Receptacle Detail
36 x IEC 60320 C13
Receptacle Detail
9 x IEC 60320 C19
UPC Alternates
037332182746
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.2"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input current
24 A
Input voltage
230 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU3MV6L2130A
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Mount Type
Rack-mountable
Output voltage
208 V AC
Package Contents
- Metered PDU3MV6L2130A 45-Outlets PDU
- Cord Retention Sleeves (36 C14 9 C19)
- Spare Installation Buttons (2 9mm / 4 6mm)
- Rack Mounting Brackets
- Owner's Manual
Plug/Connector Type
NEMA L21-30P
Product Name
Metered PDU3MV6L2130A 45-Outlets PDU
Product Series
Metered
Product Type
PDU
Protection Type
Overload Protection
Rack Height
0U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
13.50 lb
Width
2.7"
