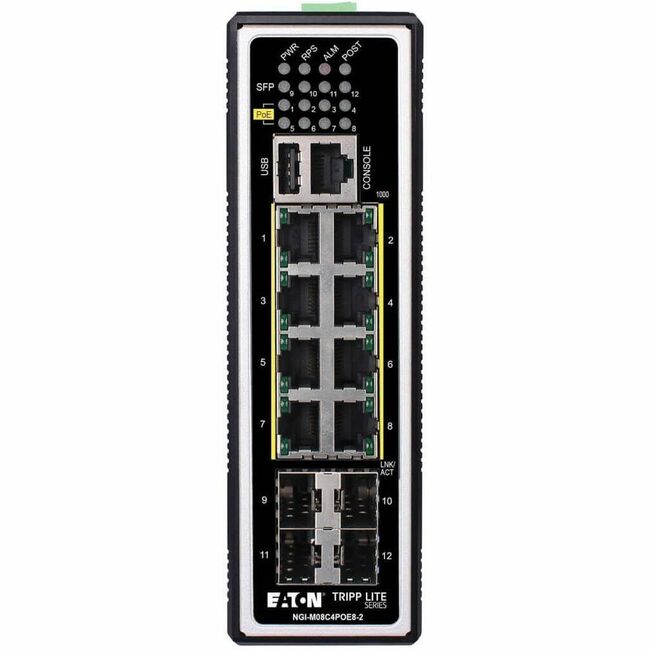

Tripp Lite NGI-M08C4POE8-2 Ethernet Switch
Tripp Lite NGI-M08C4POE8-2 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - 18 W Power Consumption - 240 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty
| $753.67 | Retail $1,200.00 |
- 8 auto-negotiating RJ45 and 4 GbE SFP ports connect devices over a LAN
- PoE+ ports deliver up to 30W each with a total PoE budget up to 240W
- Industrial-grade switch supports operating temperature range of -40° to 75°C
- Comes pre-loaded with Layer 2 network management software for IGMP snooping
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
62711
Item:
NGI-M08C4POE8-2
UPC Code:
037332266958
Our Part #
9UZ634
Condition
New
$753.67EA
$1,200.00
$1,200.00
Availability
Only 80 Left In Stock
Product description
Tripp Lite NGI-M08C4POE8-2 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - 18 W Power Consumption - 240 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty
8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - 18 W Power Consumption - 240 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty
Specifications
Number of Total Expansion Slots
4
PoE Budget
240 W
Product Material
Aluminum
Shared SFP Slot
No
Total Number of Network Ports
8
UPC Alternates
037332266958
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
4.7"
Environmental Certification
RoHS
Environmental Certification
REACH
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP (mini-GBIC)
Form factor
DIN Rail Mountable
Height
6.3"
Input voltage
24 V DC
Input voltage
57 V DC
Layer Supported
2
Limited Warranty
3 Year
Manageable
Yes
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
NGI-M08C4POE8-2
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
8-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it which improves the efficiency and potential throughput of the network. The NGI-M08C4-L2 also features four GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
Protective Metal Housing Built to Last in Harsh Environments
The compact NGI-M08C4-L2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation government military oil and gas mining factory and warehouse applications as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Monitors and Controls Devices via CLI and Web Configuration
The NGI-M08C4-L2 supports MAC address auto-learning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS IGMP snooping SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection.
Pre-Loaded with Standard Layer 2 Network Management Software
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices.
Works with the Most Popular Web Browsers
The NGI-M08C4-L2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards rather than system software dependencies the NGI-M08C4-L2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Network Technology
100Base-FX
Network Technology
1000Base-SX/LX
Network Technology
1000Base-X
Networking standards
IEEE 802.3u
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3az
Networking standards
IEEE 802.3z
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.3
Package Contents
- NGI-M08C4POE8-2 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
Plug/Connector Type
Terminal Block
Port/Expansion Slot Details
4 x Gigabit Ethernet Uplink
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+
Power consumption
18 W
Product Name
NGI-M08C4POE8-2 Ethernet Switch
Product Type
Ethernet Switch
Weight (Approximate)
2.15 lb
Width
2"
