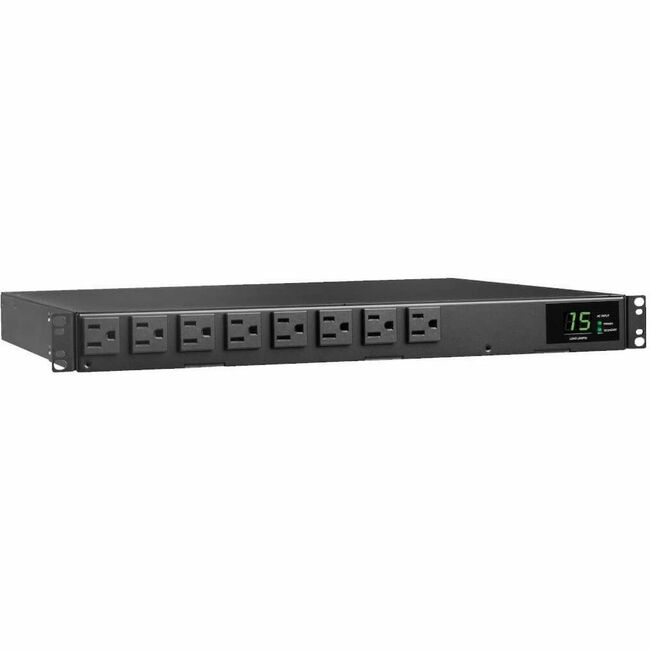

Tripp Lite PDU ATS / Metered 120V 1.44kW 15A 8 5-15R Dual 5-15P 12ft Cords
Tripp Lite PDU ATS / Metered 120V 1.44kW 15A 8 5-15R Dual 5-15P 12ft Cords - Metered Auto Transfer Switch - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable, Wall-mountable - TAA Compliant
| $364.80 | Retail $565.34 |
- 8 NEMA 5-15R 120V outlets distribute AC power to connected equipment
- Digital ammeter for on-site real-time load monitoring helps prevent power overloads
- Dual 12 ft. cords with NEMA 5-15P inputs connect to separate power sources
- Installs in 1U of space in EIA-standard 19 in. racks using included mounting brackets
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
62895
Item:
PDUMH15ATS
UPC Code:
037332261366
Our Part #
9HC106
Condition
New
$364.80EA
$565.34
$565.34
Availability
Only 20 Left In Stock
You may be also interested
Product description
Tripp Lite PDU ATS / Metered 120V 1.44kW 15A 8 5-15R Dual 5-15P 12ft Cords - Metered Auto Transfer Switch - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable, Wall-mountable - TAA Compliant
Metered Auto Transfer Switch - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack-mountable, Wall-mountable - TAA Compliant
Specifications
Mounting Orientation
Horizontal
PDU Type
Metered Auto Transfer Switch
Phase
Single Phase
Plug/Connector Detail
2 x NEMA 5-15P
Power Rating (Watt)
1520 W
Receptacle Detail
8 x NEMA 5-15R
UPC Alternates
037332261366
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
14.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
15 A
Input voltage
120 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH15ATS
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase 15A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMH15ATS features eight NEMA 5-15R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA 5-15P inputs connect to separate primary and secondary mains circuits backup generators UPS systems or utility power grids including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space or on a Wall
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.
TAA-Compliant for GSA Schedule Purchases
The PDUMH15ATS is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Mount Type
Wall-mountable
Mount Type
Rack-mountable
Output voltage
127 V AC
Output voltage
100 V AC
Package Contents
- 8-Outlets PDU
- Detachable C13 To NEMA 5-15P Secondary Input Cord 12 Ft. (3.7 m)
- Rack-Mounting Hardware
- Cord Retention Kit
- Owner's Manual
Plug/Connector Type
NEMA 5-15P
Product Name
8-Outlets PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
1U
Receptacle Type
NEMA 5-15R
Weight (Approximate)
11 lb
Width
17.5"
