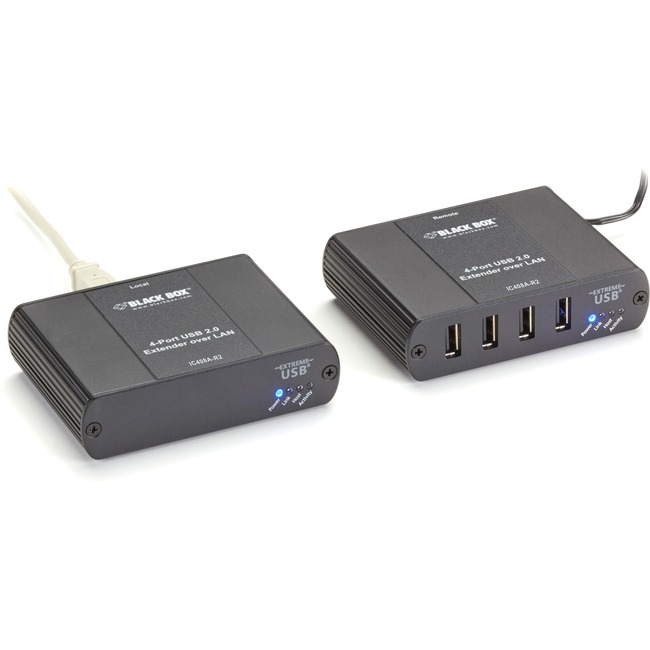

Black Box USB 2.0 Extender - CATx/LAN, 4-Port
Black Box USB 2.0 Extender - CATx/LAN, 4-Port - 2 x Network (RJ-45) - 5 x USB - 328.08 ft Extended Range
| $477.92 | Retail $575.95 |
- Transmits up to 328 feet (100 m) over CATx or over a LAN.
- Includes a local unit and remote unit with four USB 2.0 ports.
- Supplies 1A max power to the USB devices.
- Extends USB signals at speeds up to 480 Mbps.
- Plug and play. No drivers to install on your computer.
- Works with Windows®, Mac® OS X®, and Linux® systems.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
63821
Item:
IC408A-R2
UPC Code:
822088125716
Our Part #
4AV250
Condition
New
$477.92EA
$575.95
$575.95
Availability
Only 114 Left In Stock
Product description
Black Box USB 2.0 Extender - CATx/LAN, 4-Port - 2 x Network (RJ-45) - 5 x USB - 328.08 ft Extended Range
2 x Network (RJ-45) - 5 x USB - 328.08 ft Extended Range
Specifications
Maximum Extended Range
328.08 ft
UPC Alternates
822088125716
Additional Information
- Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
- Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
- Operating Humidity 20 to 80% noncondensing
- Operating Temperature 32 to 122° F (0 to 50°C)
- Power Input From 100-240 VAC 50-60 Hz adapter (included)
- Power Output 24 VDC
- RoHS Yes
- Speeds Up to 480 Mbps*
- Standards FCC (Class B) IC (Class B) CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact 16kV Air
- Storage Humidity 10 to 90% noncondensing
- Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
- Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)
- Indicators On each unit: (4) LEDs (Power Link Host Activity)
- Weight 3.1 lb (1.4 kg)
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
China
Depth
3"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmental Certification
RoHS 2
Environmentally Friendly
Yes
Height
1"
Input voltage
240 V AC
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
IC408A-R2
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control KVM extension Digital Sinage Remote Desktop USB connections Security web cameras and access control Medical device connectivity USB Web device sharing: printing scanning storage. The extender can be used in industrial control factory floor classroom or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.
Maximum Data Transfer Rate
60 MB/s
Number of Network (RJ-45) Ports
2
Number of USB Ports
5
Package Contents
- Local Extender Unit
- Remote Extender Unit
- USB Cable
- Power Adapter
- US Power Cord
- Quick Start Guide
Product Name
USB 2.0 Extender - CATx/LAN 4-Port
Product Type
USB Extender
Width
3.9"
