| $584.68 | Retail $669.88 |

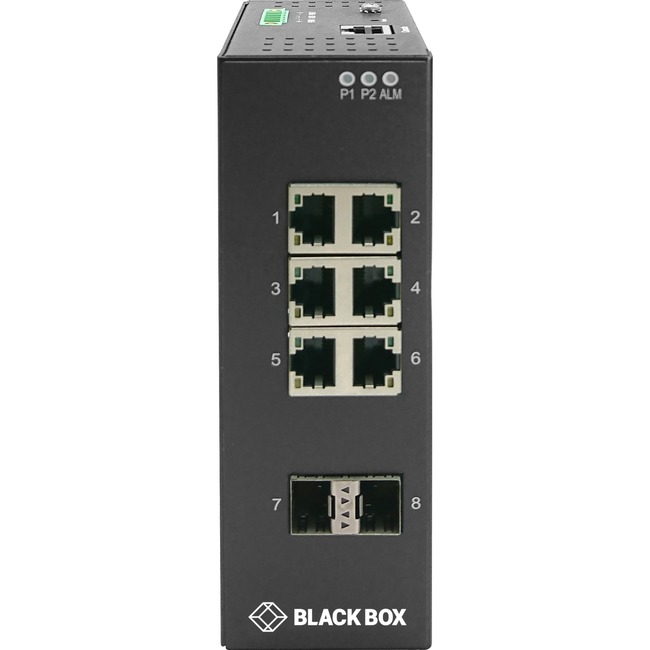

Black Box Industrial Gigabit Ethernet Managed L2+ Switch - 6 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 1 Year Limited Warranty
6 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 1 Year Limited Warranty
This switch has six 10/10/1000-Mbps RJ-45 copper ports that are autosensing. It offers full wire-speed forwarding rates auto-negotiates for network speeds and Auto-MDI/MDI-X eliminating the need for crossover cables. The two 100/1000 Ethernet SFP slots give you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 80 kilometers depending on the SFP you choose. Black Box SFPs are recommended.
Extreme applications.
Maximize uptime
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site - thus lowering costs.
The switch is fully manageable through SNMP a Web browser Telnet or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging MAC-based trunking IP-multicast IGMP snooping rapid spanning tree for redundancy. Plus it has 802.1x port-based authentication for security.
Fast failovers.
For redundancy the switch has two DC power inputs. If one power source fails the switch automatically falls over to the second power source. It offers a 20 millisecond or less failover. In addition an alarm will alert you in case of a power failure. The switch also gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP) Link Aggregation Control Protocol and a ring protocol.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12 MDR-40-24 MDR-40-48 and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.
